Graphic Design with ggplot2

Lecture 22

Dr. Greg Chism

University of Arizona
INFO 526 - Fall 2023

Warm up

Announcements

  • Project 2 proposals due
    • Today at 11:59pm for instructor review
  • RQ 5 due
    • Wednesday, Nov 15th @ 11:59pm
  • No lectures Thanksgiving week! 🦃

Setup

library(tidyverse)
── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr     1.1.4     ✔ readr     2.1.4
✔ forcats   1.0.0     ✔ stringr   1.5.1
✔ ggplot2   3.4.4     ✔ tibble    3.2.1
✔ lubridate 1.9.3     ✔ tidyr     1.3.0
✔ purrr     1.0.2
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
library(rcartocolor)
library(colorspace)
library(ggtext)
library(MetBrewer)
library(nord)
library(scico)
library(ggsci)
library(ggthemes)

# set theme for ggplot2
ggplot2::theme_set(ggplot2::theme_minimal(base_size = 14))

# set width of code output
options(width = 65)

# set figure parameters for knitr
knitr::opts_chunk$set(
  fig.width = 7,        # 7" width
  fig.asp = 0.618,      # the golden ratio
  fig.retina = 3,       # dpi multiplier for displaying HTML output on retina
  fig.align = "center", # center align figures
  dpi = 300             # higher dpi, sharper image
)

# read in london-bikes-custom.csv
bikes <- readr::read_csv(
  here::here("slides", "22", "data", "london-bikes-custom.csv"),
  col_types = "Dcfffilllddddc"
)

Color Palettes

Pre-Defined Color Palettes: Viridis

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  scale_fill_viridis_d(
    option = "plasma",
    begin = .3
  )

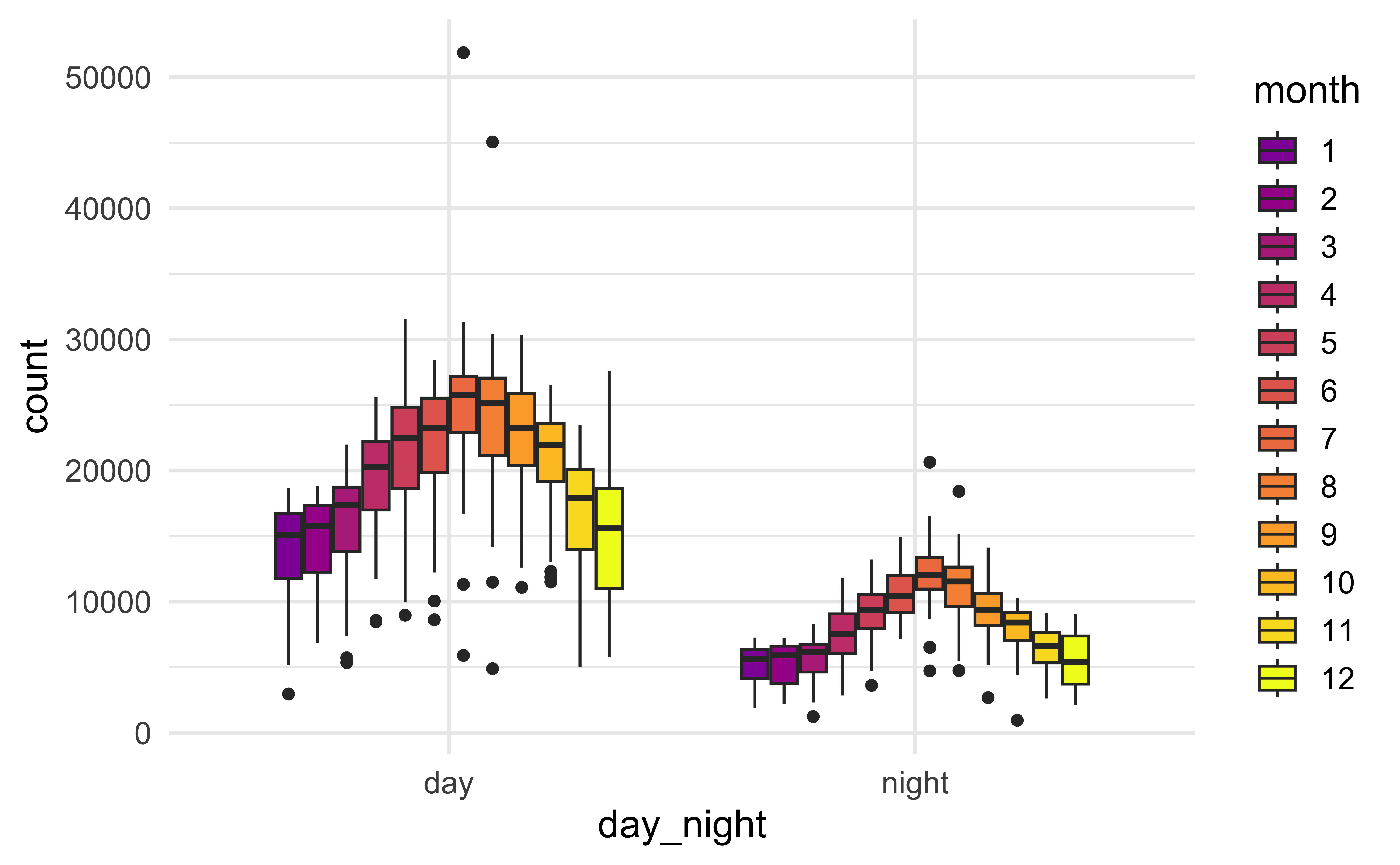

Pre-Defined Color Palettes: Viridis

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = month)
  ) +
  geom_boxplot() +
  scale_fill_viridis_d(
    option = "plasma",
    begin = .3
  )

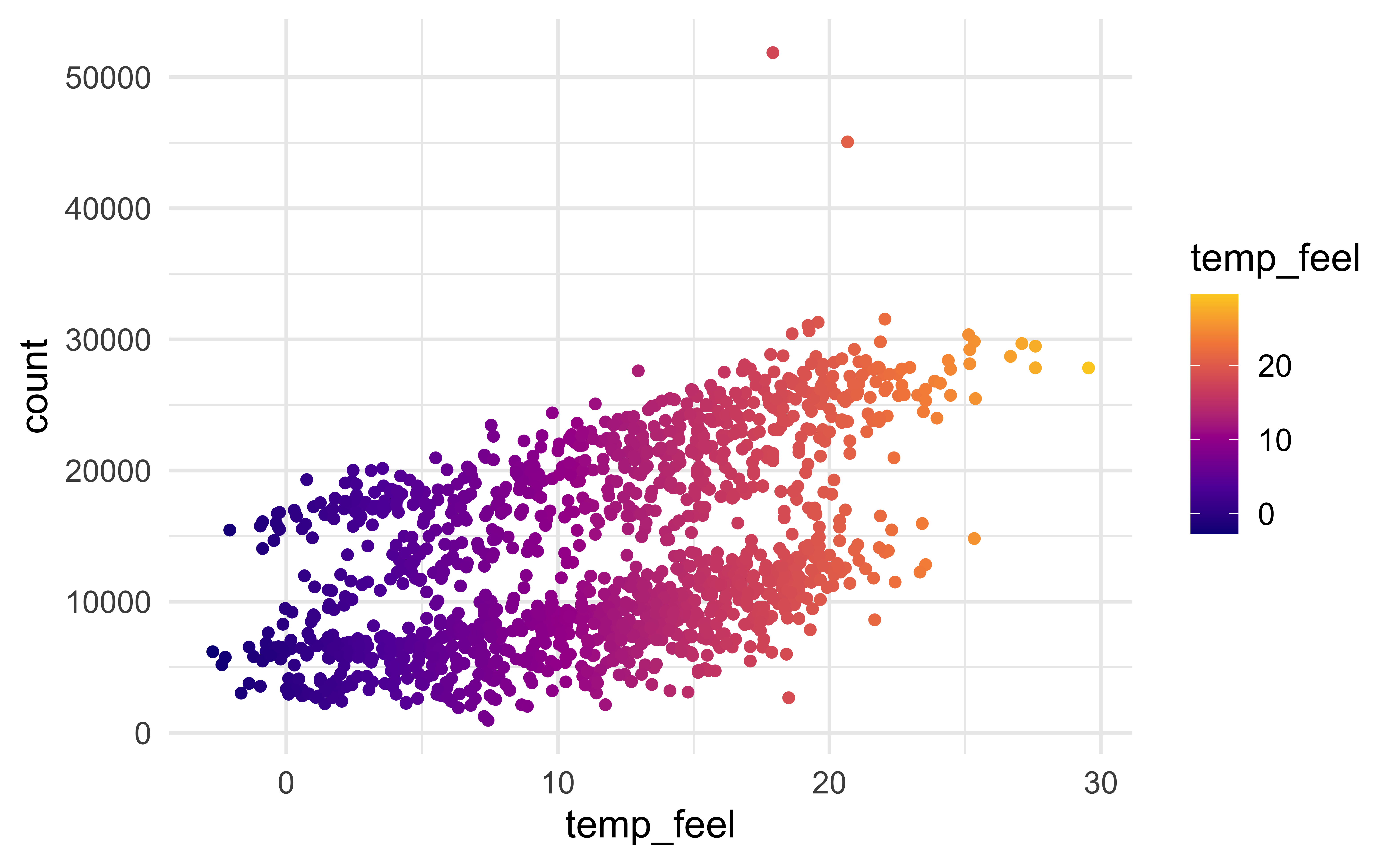

Pre-Defined Color Palettes: Viridis

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  scale_color_viridis_c(
    option = "plasma",
    end = .9
  )

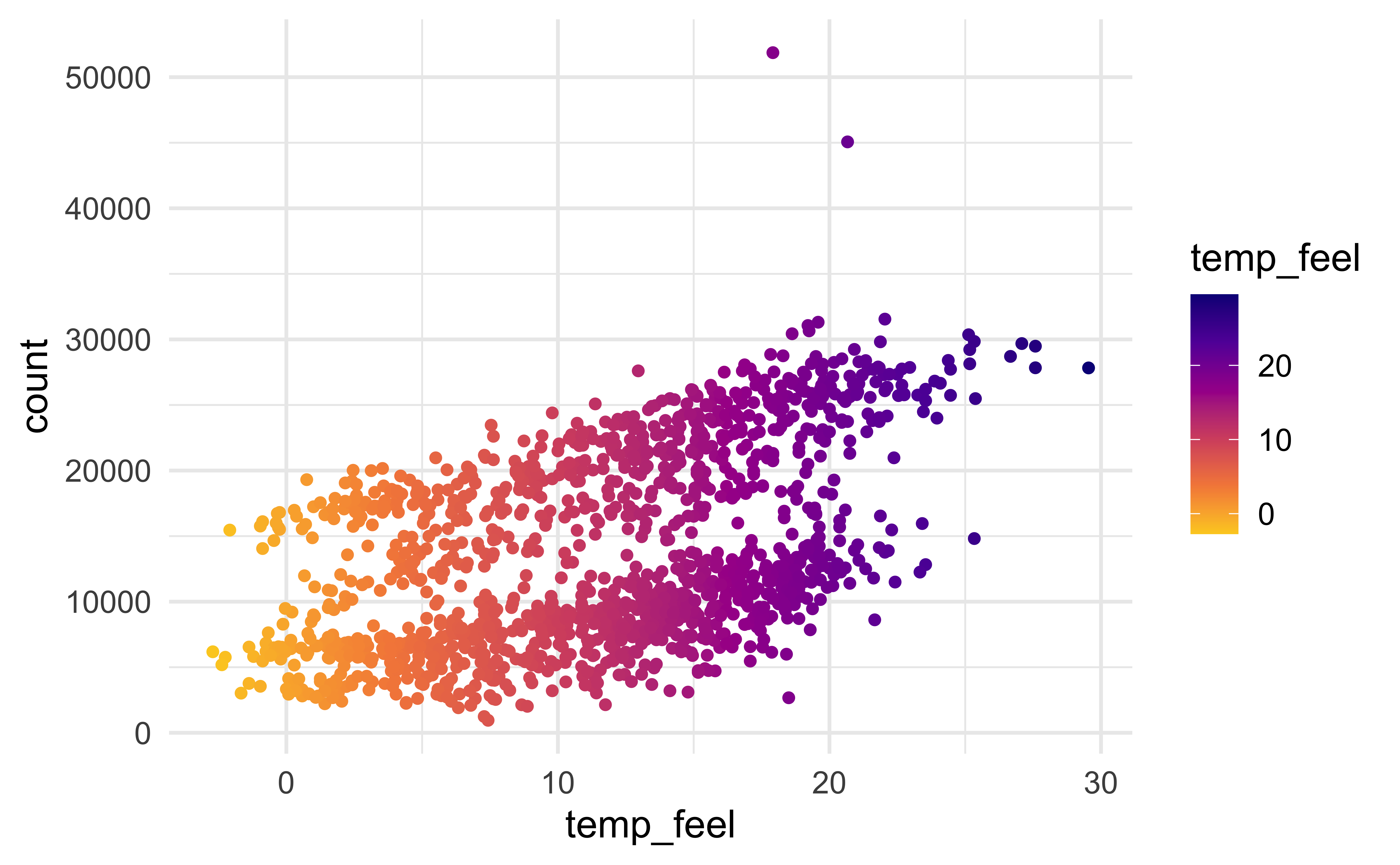

Pre-Defined Color Palettes: Viridis

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  scale_color_viridis_c(
    option = "plasma",
    end = .9,
    direction = -1
  )

Pre-Defined Color Palettes: Brewer

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  scale_fill_brewer(
    palette = "Set1"
  )

Pre-Defined Color Palettes: Brewer

RColorBrewer::display.brewer.all()

Pre-Defined Color Palettes: Brewer

RColorBrewer::display.brewer.all(colorblindFriendly = TRUE)

{rcartocolor}

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  rcartocolor::scale_fill_carto_d(
    palette = "Vivid"
  )

{rcartocolor}

rcartocolor::display_carto_all()

{rcartocolor}

rcartocolor::display_carto_all(colorblind_friendly = TRUE)

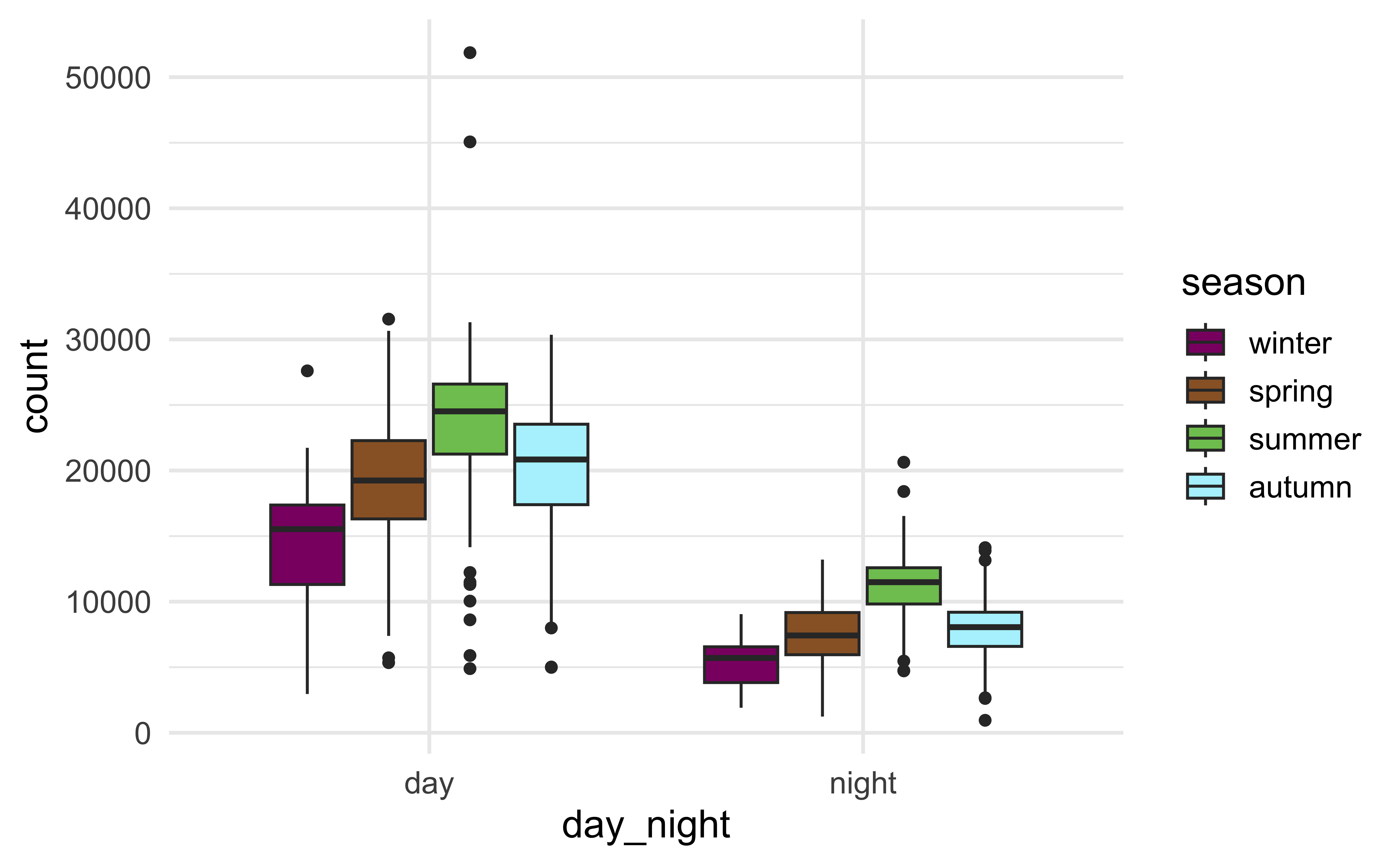

{scico}

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  scico::scale_fill_scico_d(
    palette = "hawaii"
  )

{scico}

scico::scico_palette_show()

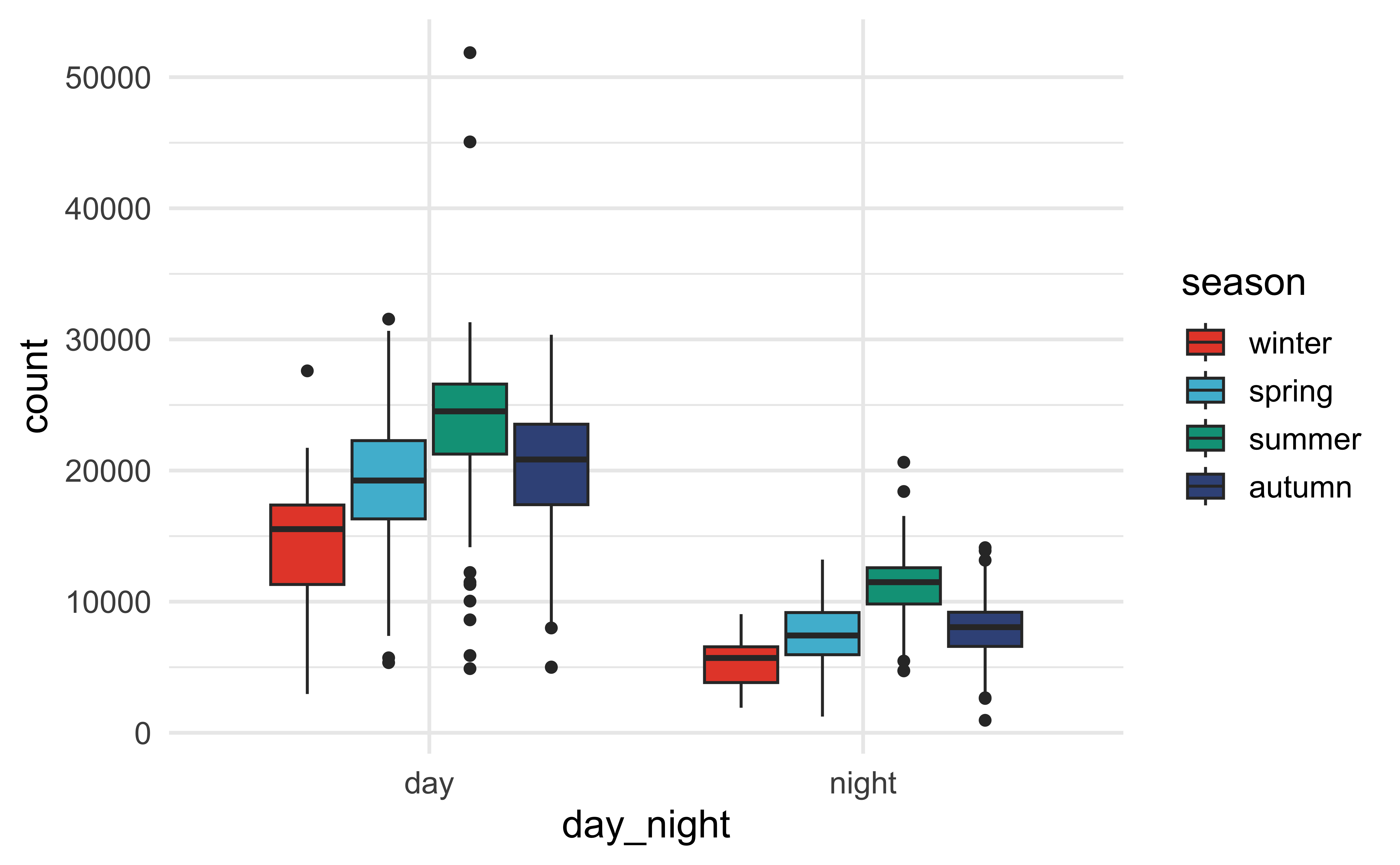

{ggsci} and {ggthemes}

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  ggsci::scale_fill_npg()

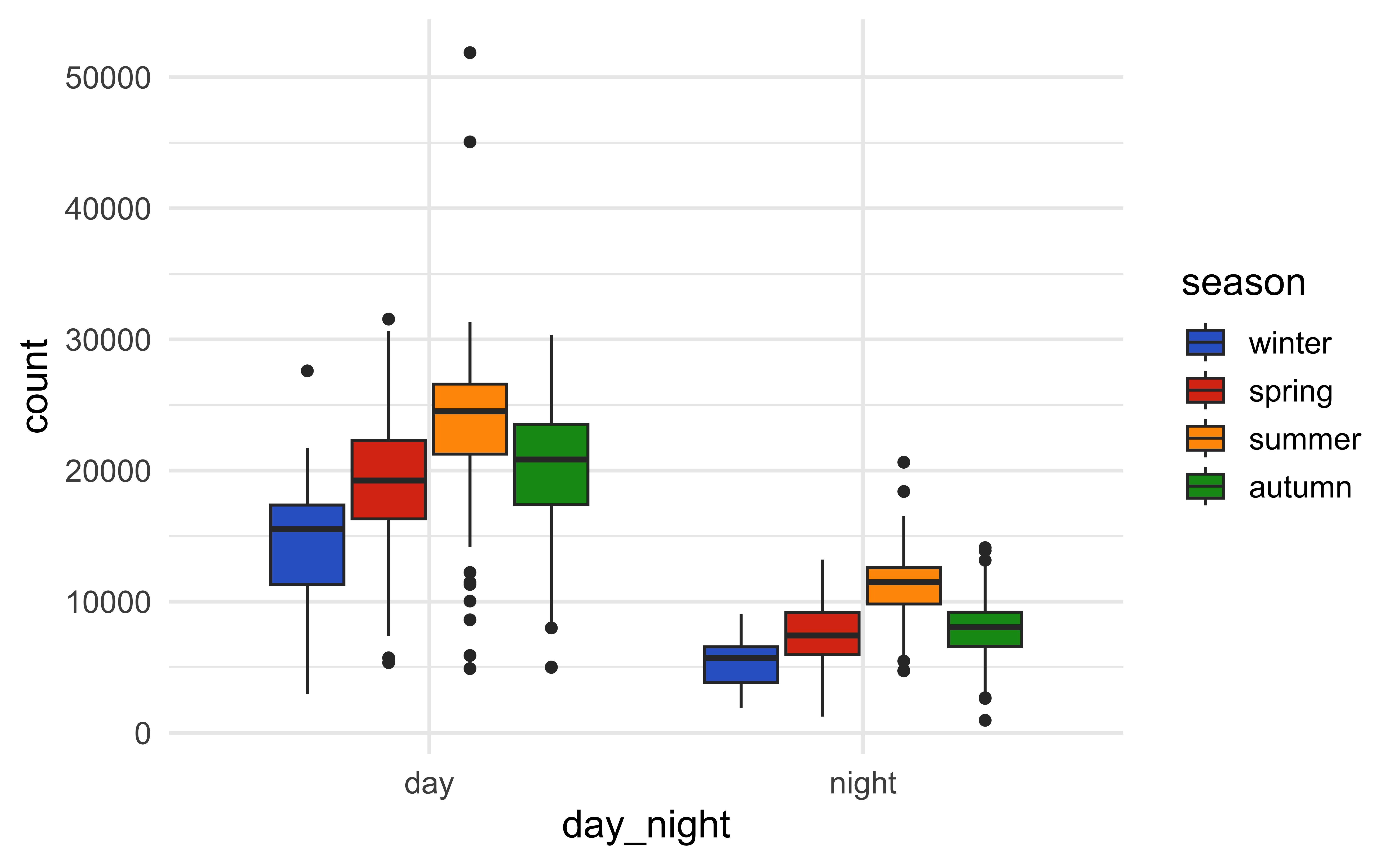

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  ggthemes::scale_fill_gdocs()

{nord}

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  nord::scale_fill_nord(
    palette = "aurora"
  )

{nord}

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  nord::scale_color_nord(
    palette = "silver_mine",
    discrete = FALSE
  )

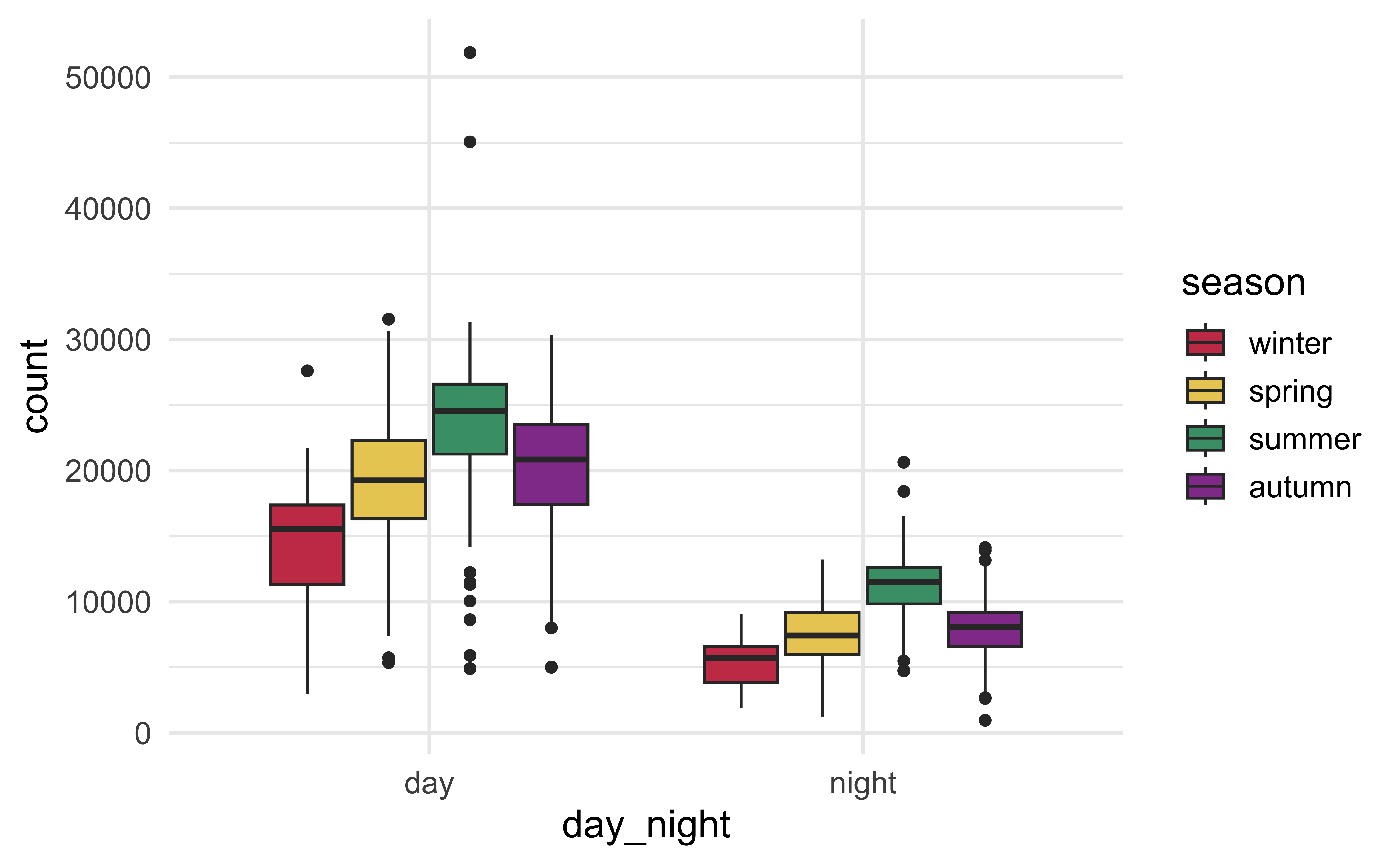

{MetBrewer}

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  MetBrewer::scale_fill_met_d(
    name = "Klimt"
  )

{MetBrewer}

MetBrewer::display_all()

{MetBrewer}

MetBrewer::display_all(colorblind_only = TRUE)

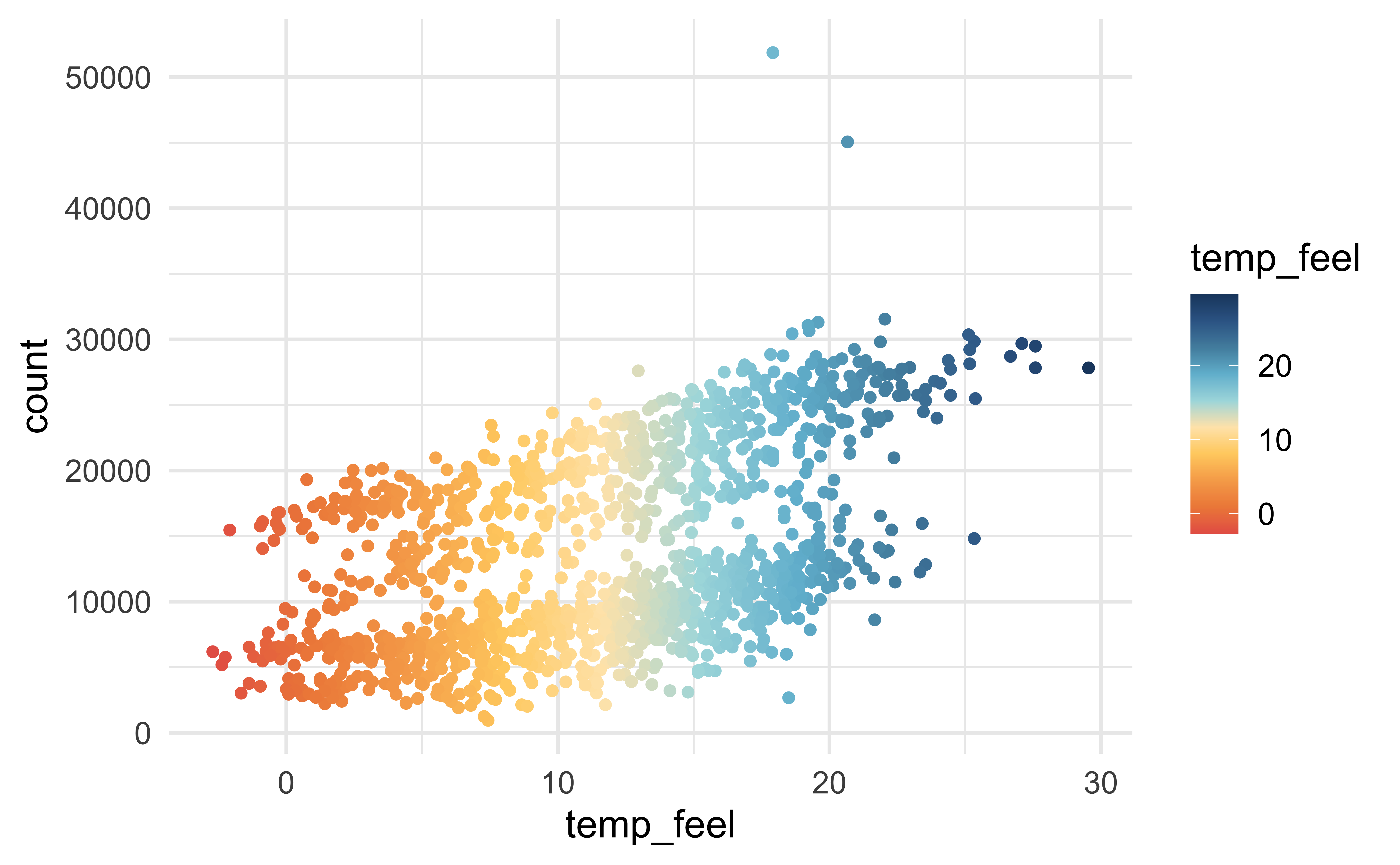

{MetBrewer}

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  MetBrewer::scale_color_met_c(
    name = "Hiroshige"
  )

Customize Palettes

Customize Existing Palettes

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  rcartocolor::scale_fill_carto_d(
    name = "Vivid"
  )

Customize Existing Palettes

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  scale_fill_manual(
    values = carto_pal(
      name = "Vivid", n = 4
    )
  )

Customize Existing Palettes

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  scale_fill_manual(
    values = carto_pal(
      name = "Vivid", n = 5
    )[1:4]
  )

Customize Existing Palettes

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  scale_fill_manual(
    values = carto_pal(
      name = "Vivid", n = 6
    )[c(1, 3:5)]
  )

Customize Existing Palettes

carto_custom <-
  carto_pal(
    name = "Vivid", n = 6
  )[c(1, 3:5)]

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  scale_fill_manual(
    values = carto_custom
  )

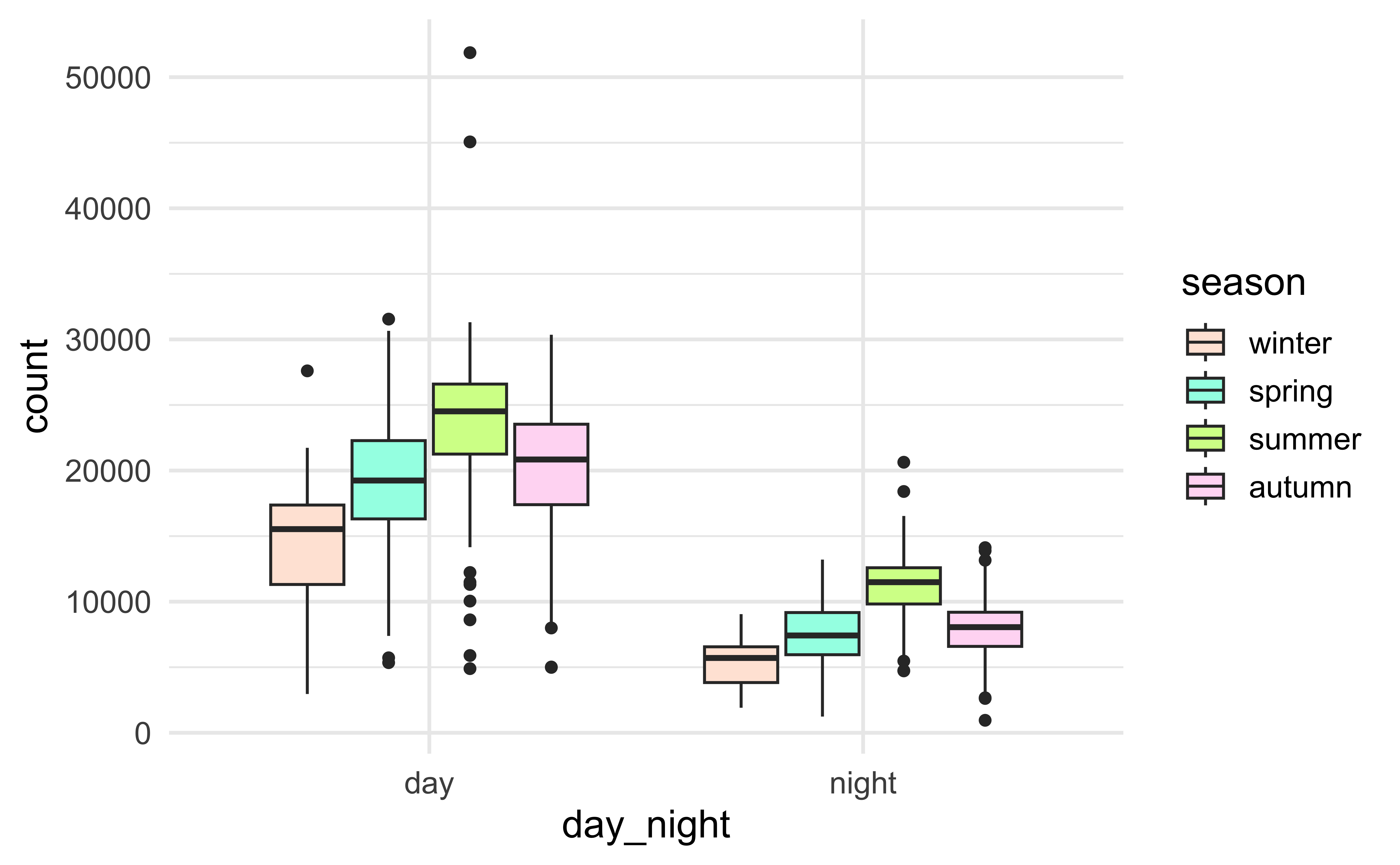

Customize Existing Palettes

carto_light <- lighten(carto_custom, .8)

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  scale_fill_manual(
    values = carto_light
  )

Customize Existing Palettes

ggplot(
    bikes,
    aes(x = day_night, y = count)
  ) +
  geom_boxplot(
    aes(fill = season,
        fill = after_scale(
          lighten(fill, .8)
    ))
  ) +
  scale_fill_manual(
    values = carto_custom
  )
Warning: Duplicated aesthetics after name standardisation: fill

Customize Existing Palettes

ggplot(
    bikes,
    aes(x = day_night, y = count)
  ) +
  geom_boxplot(
    aes(
      fill = stage(
        season,
        after_scale =
          lighten(fill, .8)
      )
    )
  ) +
  scale_fill_manual(
    values = carto_custom
  )

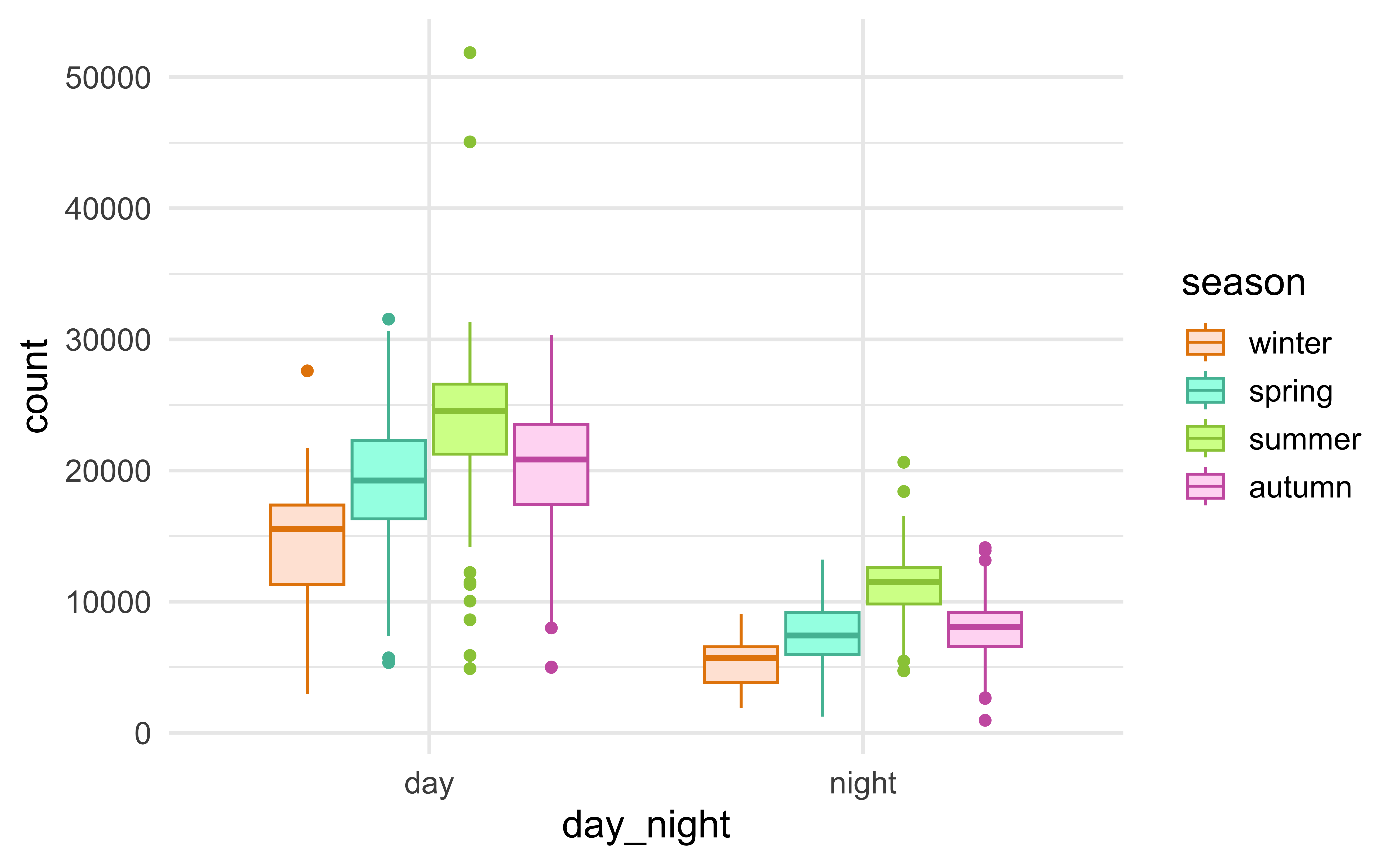

Customize Existing Palettes

ggplot(
    bikes,
    aes(x = day_night, y = count)
  ) +
  geom_boxplot(
    aes(color = season,
        fill = after_scale(
          lighten(color, .8)
    ))
  ) +
  scale_color_manual(
    values = carto_custom
  )

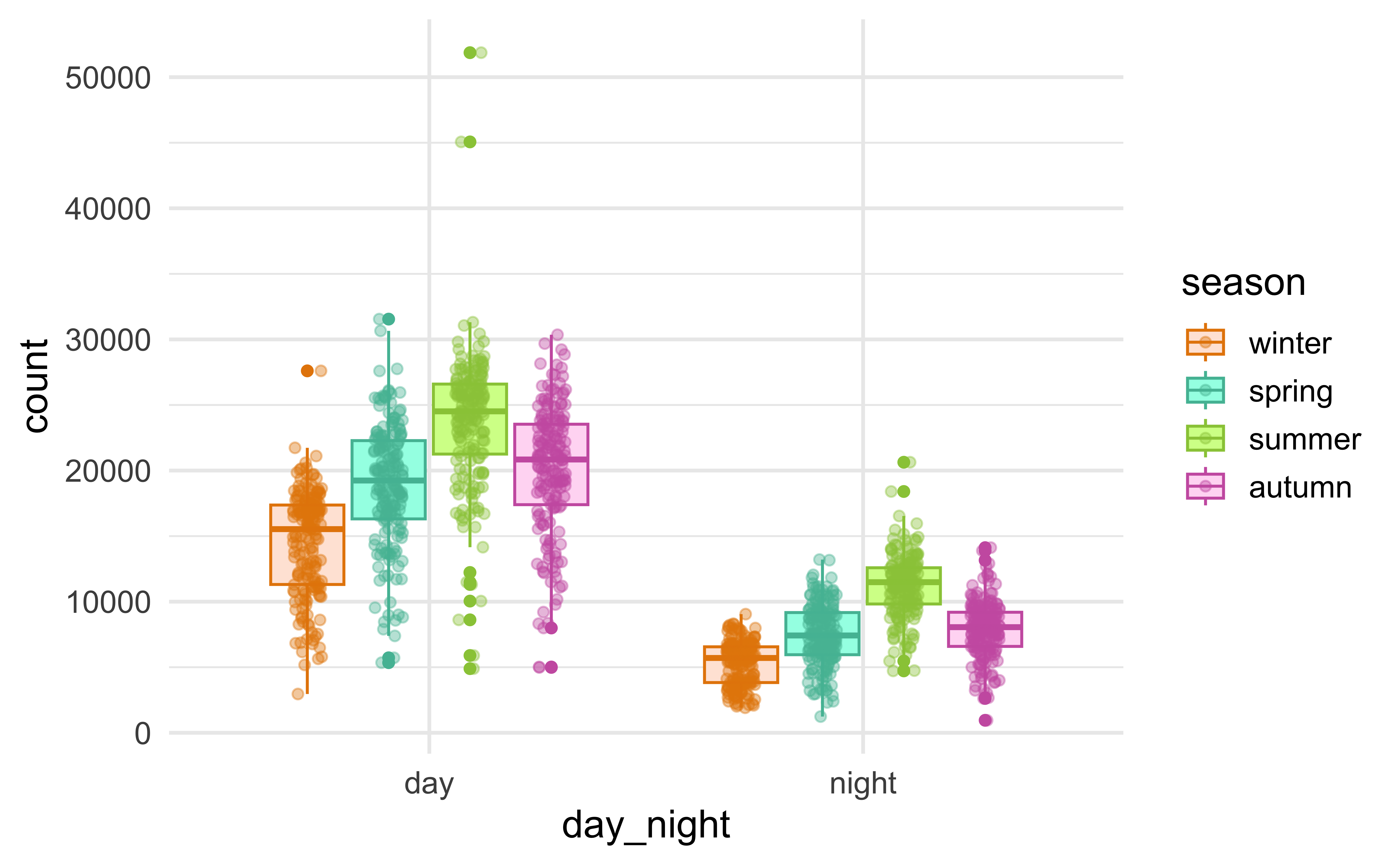

Customize Existing Palettes

ggplot(
    bikes,
    aes(x = day_night, y = count)
  ) +
  geom_boxplot(
    aes(color = season,
        fill = after_scale(
          lighten(color, .8)
    ))
  ) +
  geom_jitter(
    aes(color = season),
    position = position_jitterdodge(
      dodge.width = .75,
      jitter.width = .2
    ),
    alpha = .4
  ) +
  scale_color_manual(
    values = carto_custom
  )

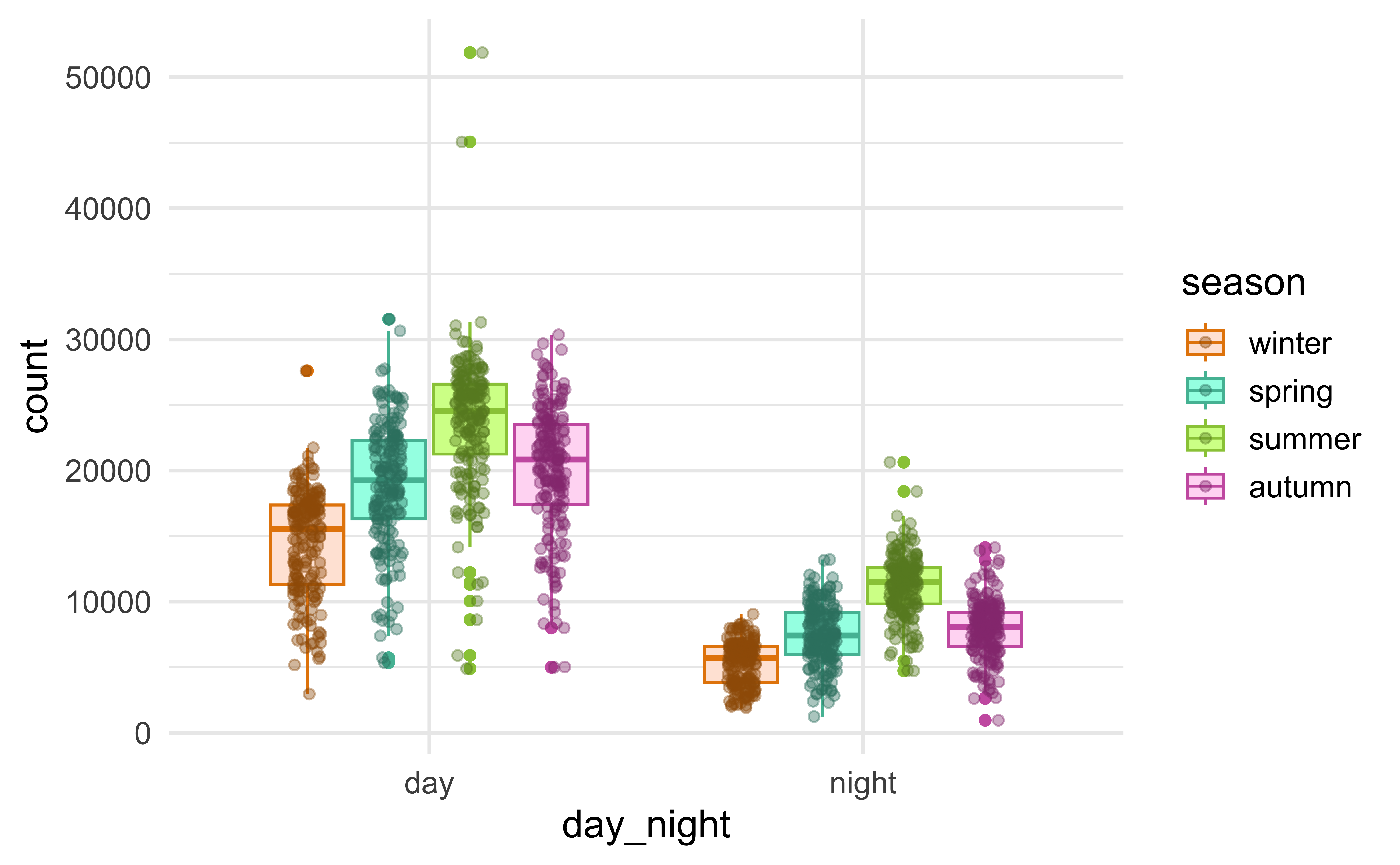

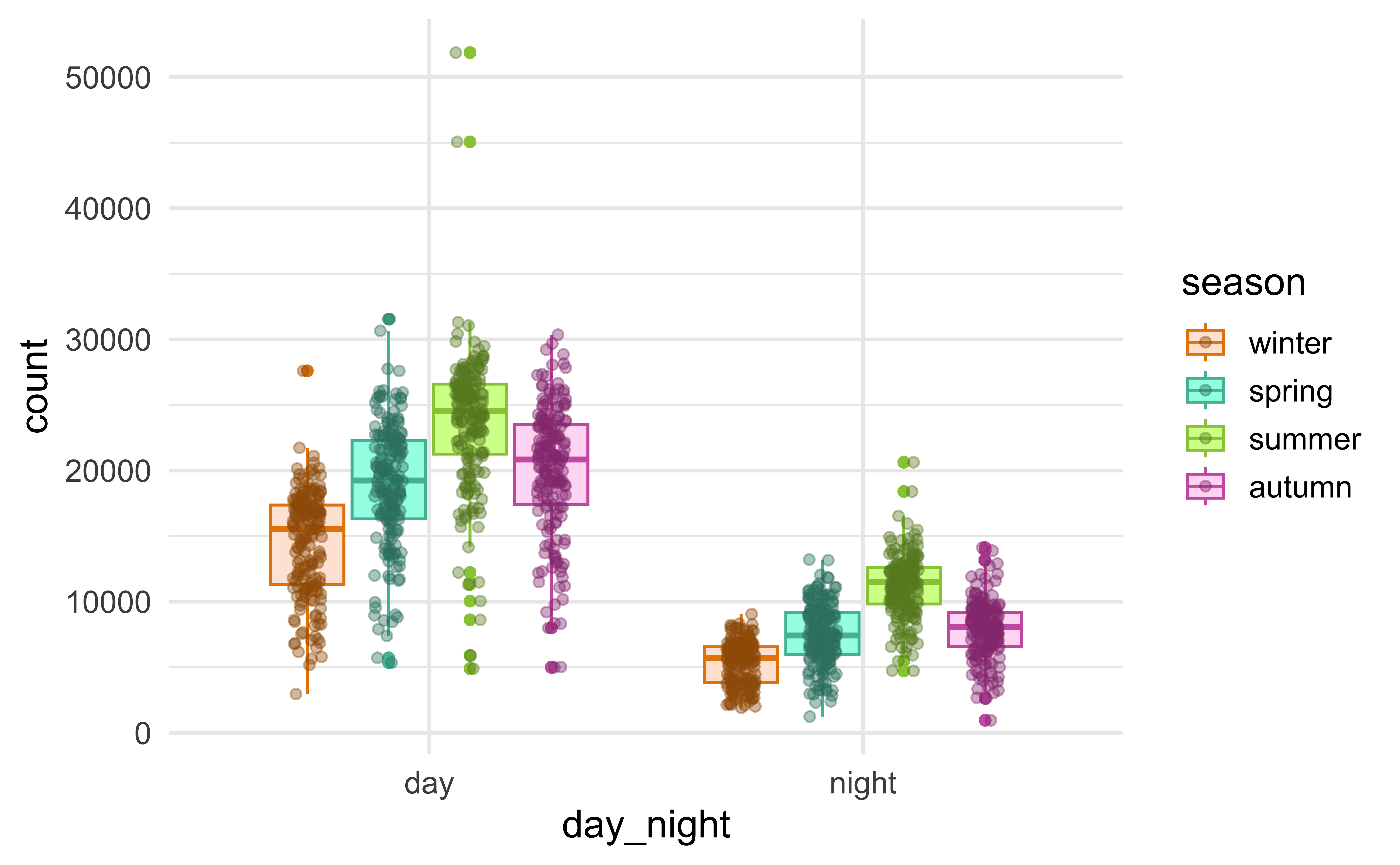

Customize Existing Palettes

ggplot(
    bikes,
    aes(x = day_night, y = count)
  ) +
  geom_boxplot(
    aes(color = season,
        fill = after_scale(
          lighten(color, .8)
        ))
  ) +
  geom_jitter(
    aes(color = season,
        color = after_scale(
          darken(color, .3)
    )),
    position = position_jitterdodge(
      dodge.width = .75,
      jitter.width = .2
    ),
    alpha = .4
  ) +
  scale_color_manual(
    values = carto_custom
  )
Warning: Duplicated aesthetics after name standardisation:
colour

Customize Existing Palettes

ggplot(
    bikes,
    aes(x = day_night, y = count)
  ) +
  geom_boxplot(
    aes(color = season,
        fill = after_scale(
          lighten(color, .8)
        ))
  ) +
  geom_jitter(
    aes(color = season,
        color = after_scale(
          darken(color, .3)
        )),
    position = position_jitterdodge(
      dodge.width = .75,
      jitter.width = .2
    ),
    alpha = .4
  ) +
  scale_color_manual(
    values = carto_custom
  )
Warning: Duplicated aesthetics after name standardisation:
colour

Create New Palettes

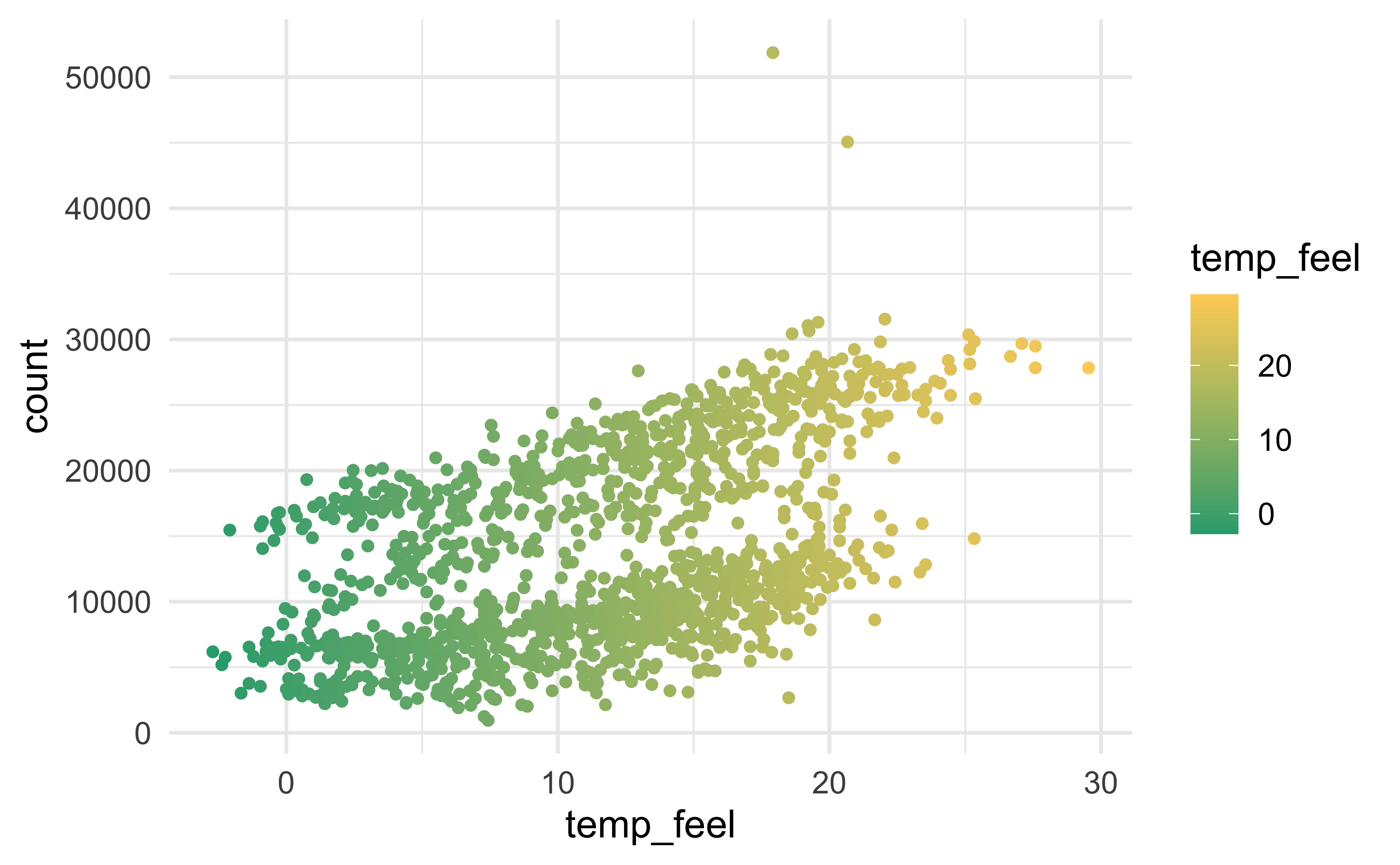

Create Sequential Palettes

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  scale_color_gradient(
    low = "#28A87D",
    high = "#FFD166"
  )

Create Diverging Palettes

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  scale_color_gradient2(
    low = "#663399",
    high = "#993334",
    mid = "grey95"
  )

Create Diverging Palettes

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  scale_color_gradient2(
    low = "#663399",
    high = "#993334",
    mid = "grey92",
    midpoint = 10
  )

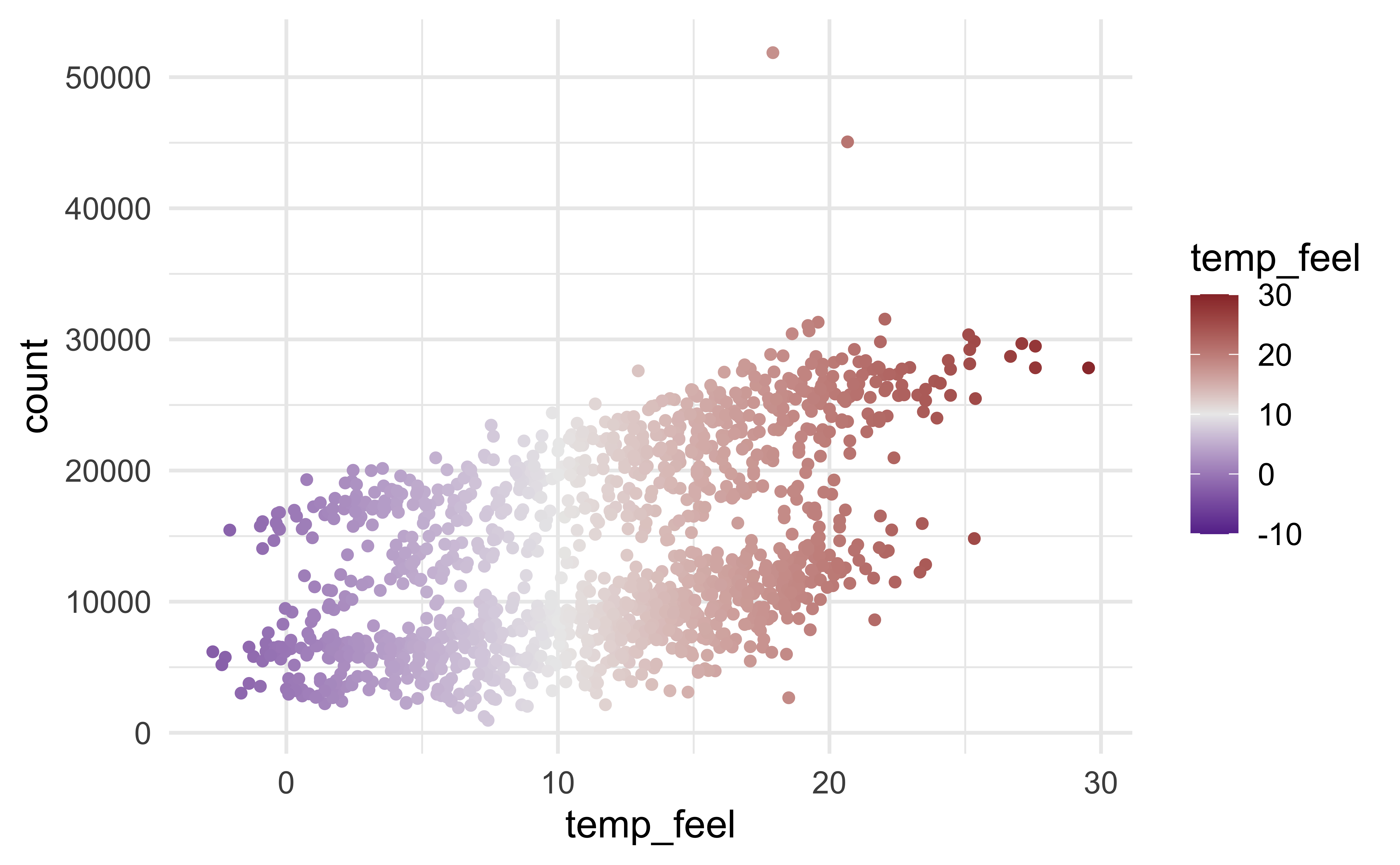

Create Diverging Palettes

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  scale_color_gradient2(
    low = "#663399",
    high = "#993334",
    mid = "grey92",
    midpoint = 10,
    limits = c(-10, 30)
  )

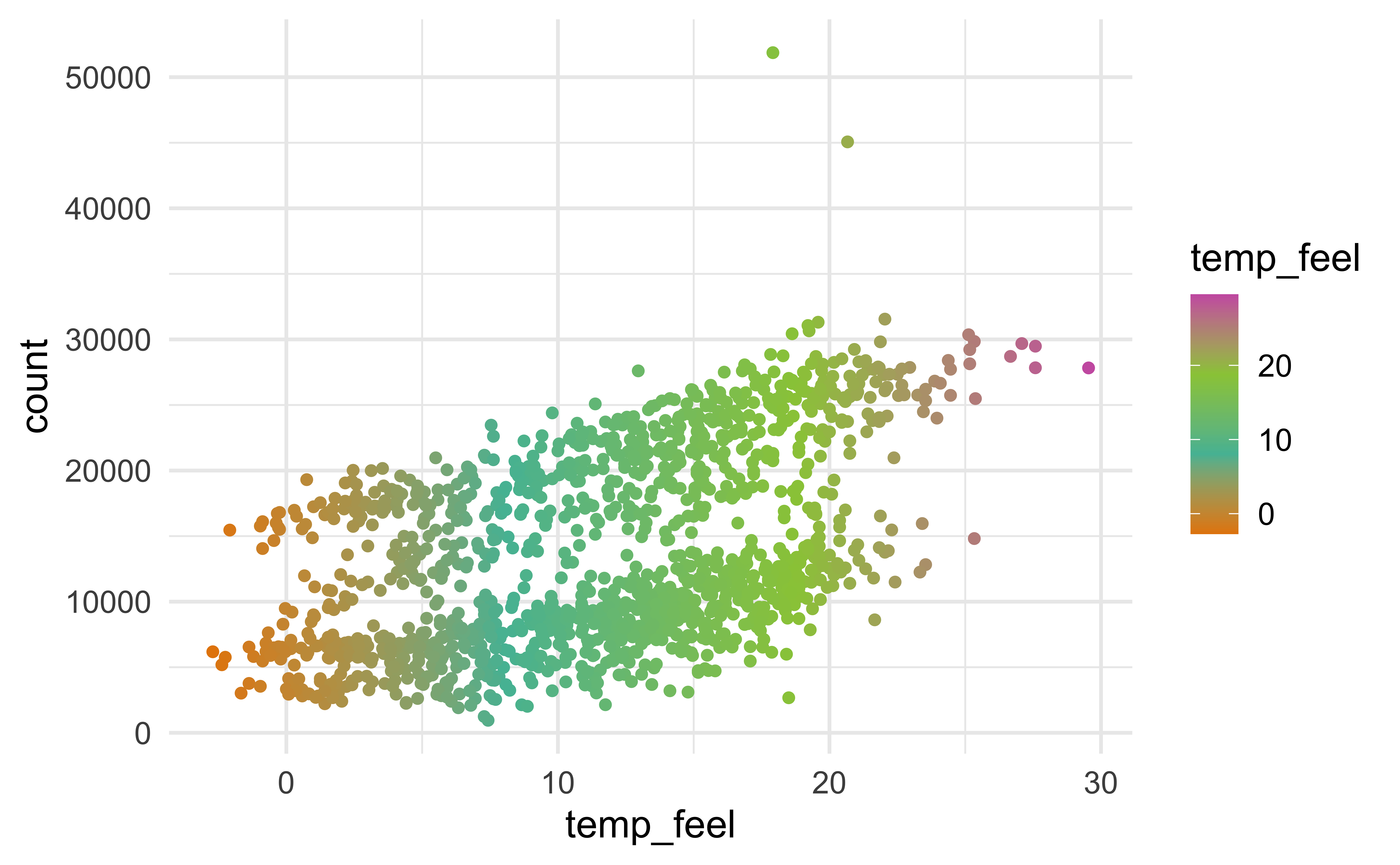

Create Any Palette

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  scale_color_gradientn(
    colors = carto_custom
  )

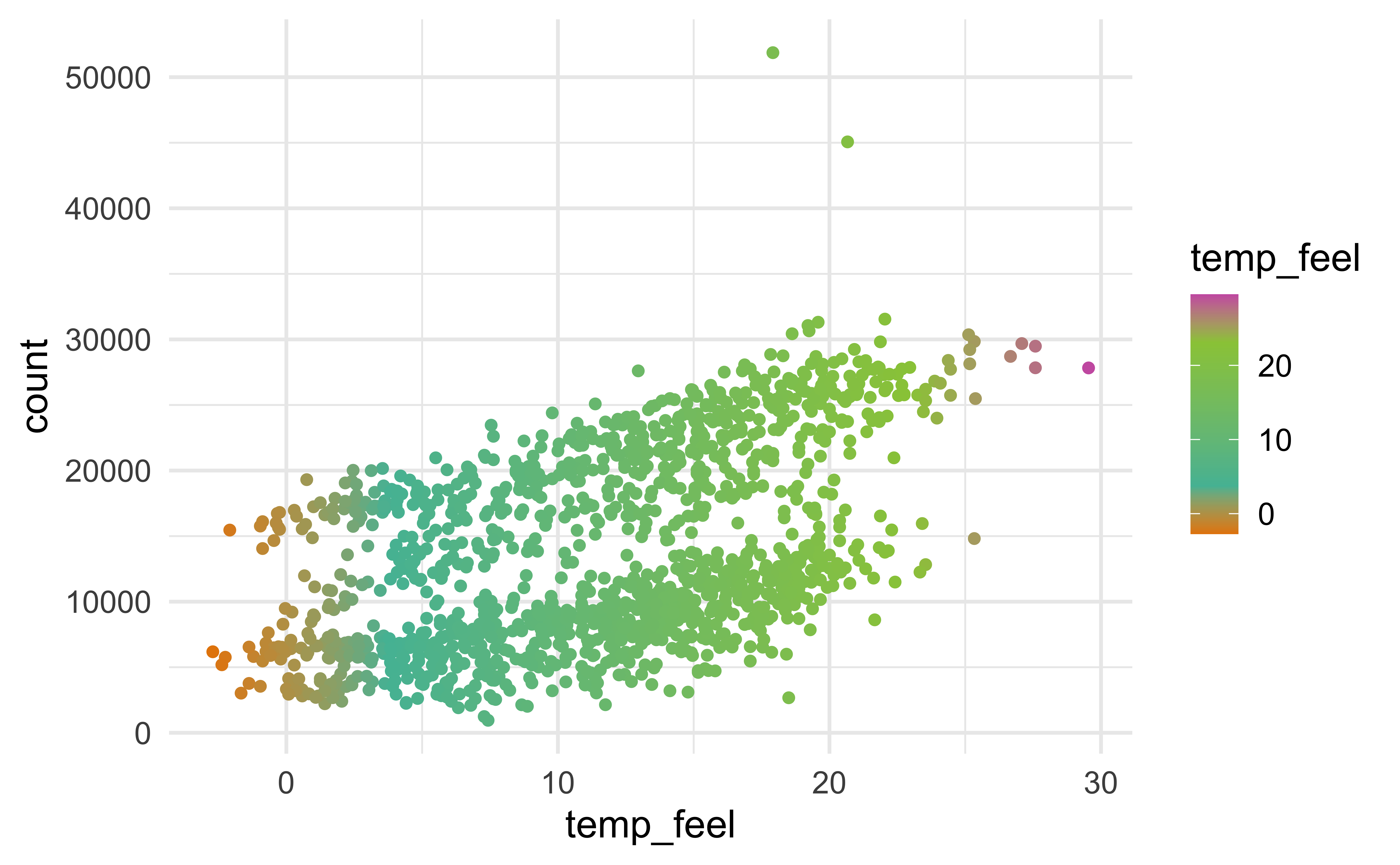

Create Any Palette

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  scale_color_gradientn(
    colors = carto_custom,
    values = c(0, .2, .8, 1)
  )

Build Your Own
scale_color|fill_*()

“Black Lives 1900: W. E. B. Du Bois at the Paris Exposition” reprints some of the striking photographs and graphics that Du Bois and his curators commissioned for the World’s Fair, here the colorful stacked bar chart on income and expenditure of 150 negro families in Atlanta.

Illustration by W. E. B. Du Bois, Courtesy Library of Congress

Build Your Own scale_color|fill_*()

dubois_colors <- function(...) {
  dubois_cols <- c(
    `black`    = "#000000",
    `purple`   = "#582f6c",
    `violet`   = "#94679C",
    `pink`     = "#ef849f",
    `softred`  = "#f4b7a7",
    `iceblue`  = "#bccbf3",
    `palegrey` = "#e4e4e4"
  )

  cols <- c(...)

  if (is.null(cols))
    return (dubois_cols)

  dubois_cols[cols]
}

dubois_colors("black", "pink", "softred", "iceblue")
    black      pink   softred   iceblue
"#000000" "#ef849f" "#f4b7a7" "#bccbf3"

Build Your Own scale_color|fill_*_d()

dubois_pal_d <- function(palette = "default", reverse = FALSE) {
  function(n) {
    if(n > 5) stop('Palettes only contains 5 colors')

    if (palette == "default") { pal <- dubois_colors("black", "violet", "softred", "iceblue", "palegrey")[1:n] }
    if (palette == "dark") { pal <- dubois_colors(1:5)[1:n] }
    if (palette == "light") { pal <- dubois_colors(3:7)[1:n] }

    pal <- unname(pal)

    if (reverse) rev(pal) else pal
  }
}

dubois_pal_d()(3)
[1] "#000000" "#94679C" "#f4b7a7"

Build Your Own scale_fill|color_*_d()

scale_color_dubois_d <- function(palette = "default", reverse = FALSE, ...) {
  if (!palette %in% c("default", "dark", "light")) stop('Palette should be "default", "dark" or "light".')

  pal <- dubois_pal_d(palette = palette, reverse = reverse)

  ggplot2::discrete_scale("colour", paste0("dubois_", palette), palette = pal, ...)
}

scale_fill_dubois_d <- function(palette = "default", reverse = FALSE, ...) {
  if (!palette %in% c("default", "dark", "light")) stop('Palette should be "default", "dark" or "light".')

  pal <- dubois_pal_d(palette = palette, reverse = reverse)

  ggplot2::discrete_scale("fill", paste0("dubois_", palette), palette = pal, ...)
}

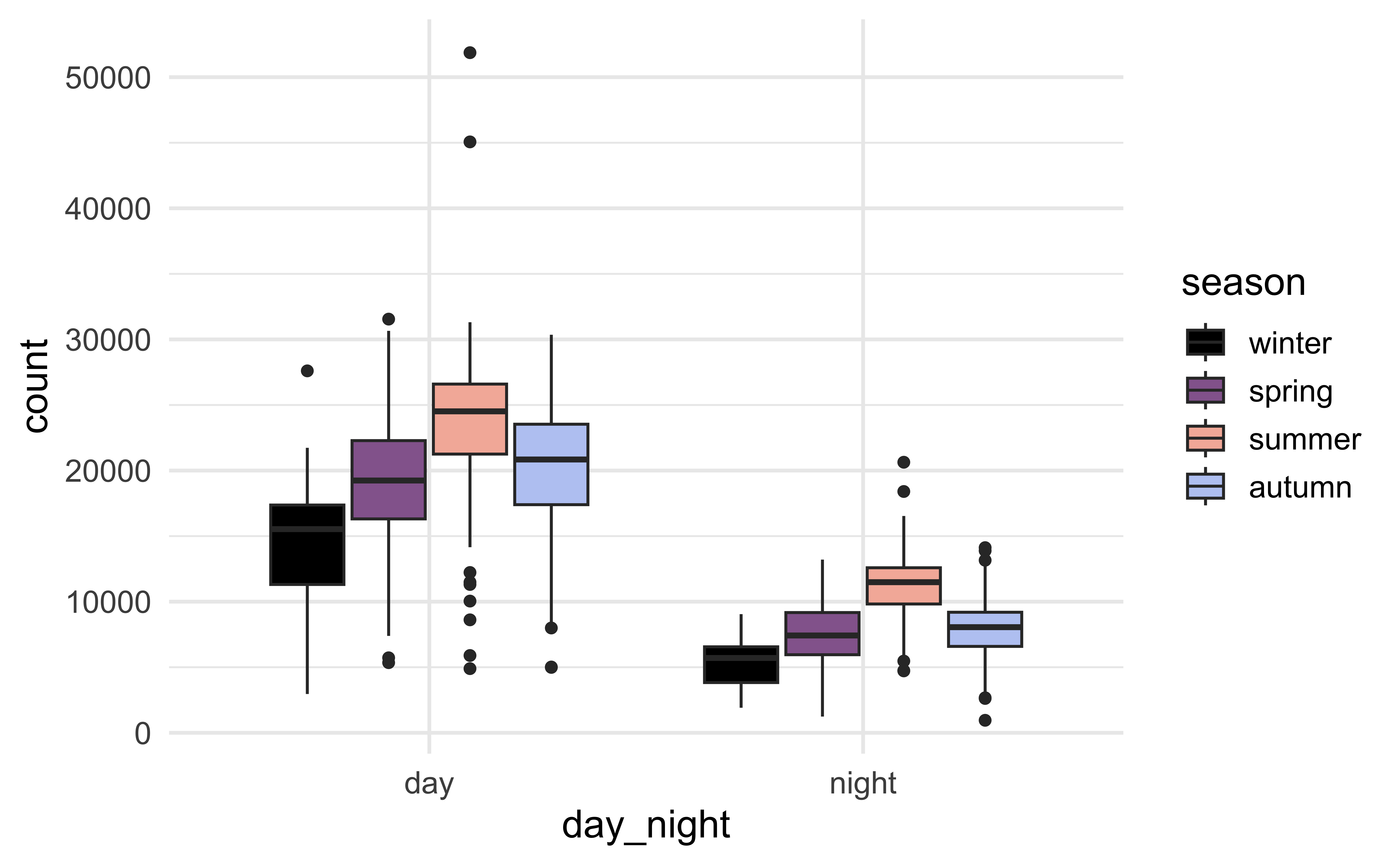

Use Your Own scale_fill_*_d()

ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  scale_fill_dubois_d()

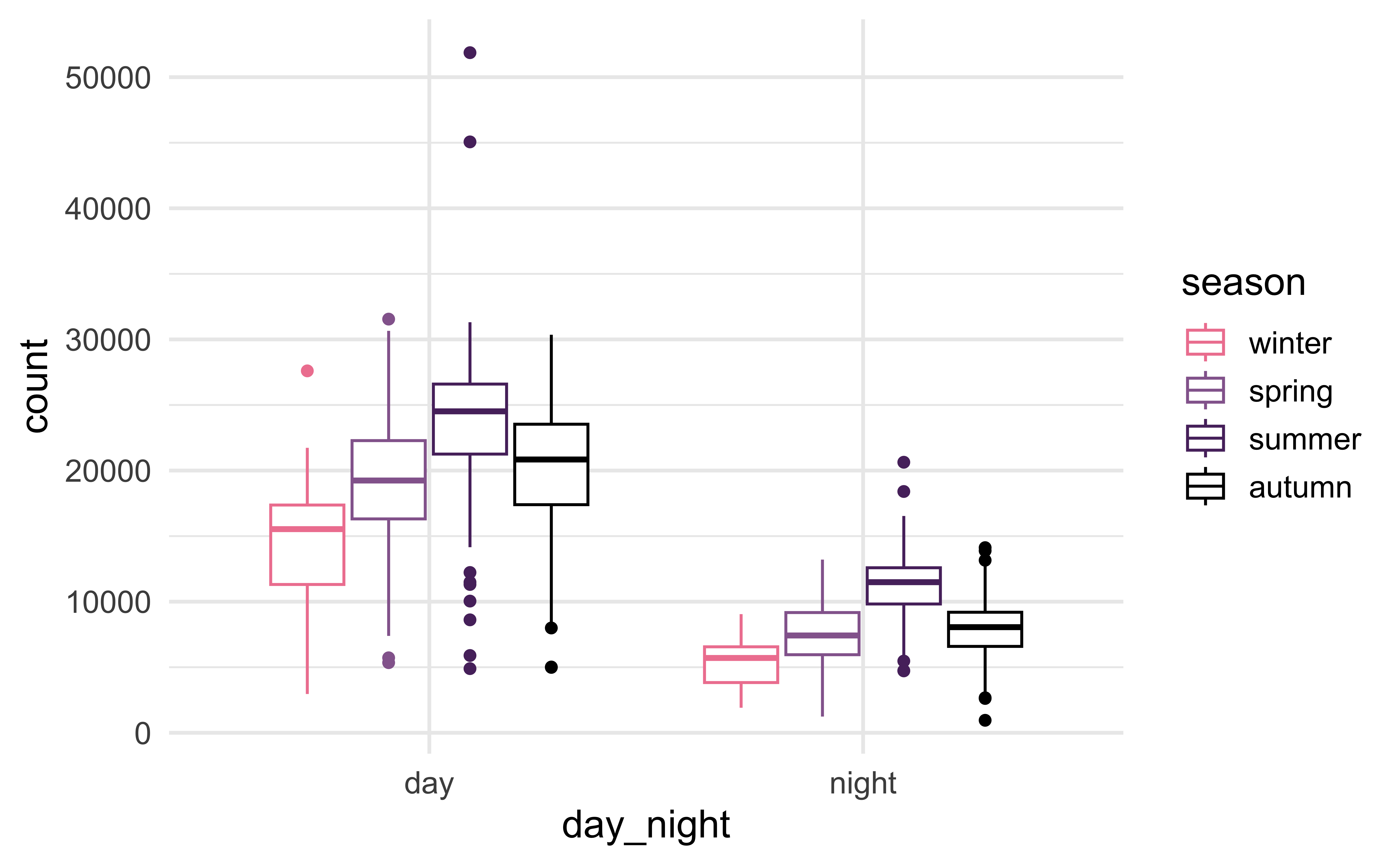

Use Your Own scale_color_*_d()

ggplot(
    bikes,
    aes(x = day_night, y = count,
        color = season)
  ) +
  geom_boxplot() +
  scale_color_dubois_d(
    palette = "dark",
    reverse = TRUE
  )

Test Your Palettes

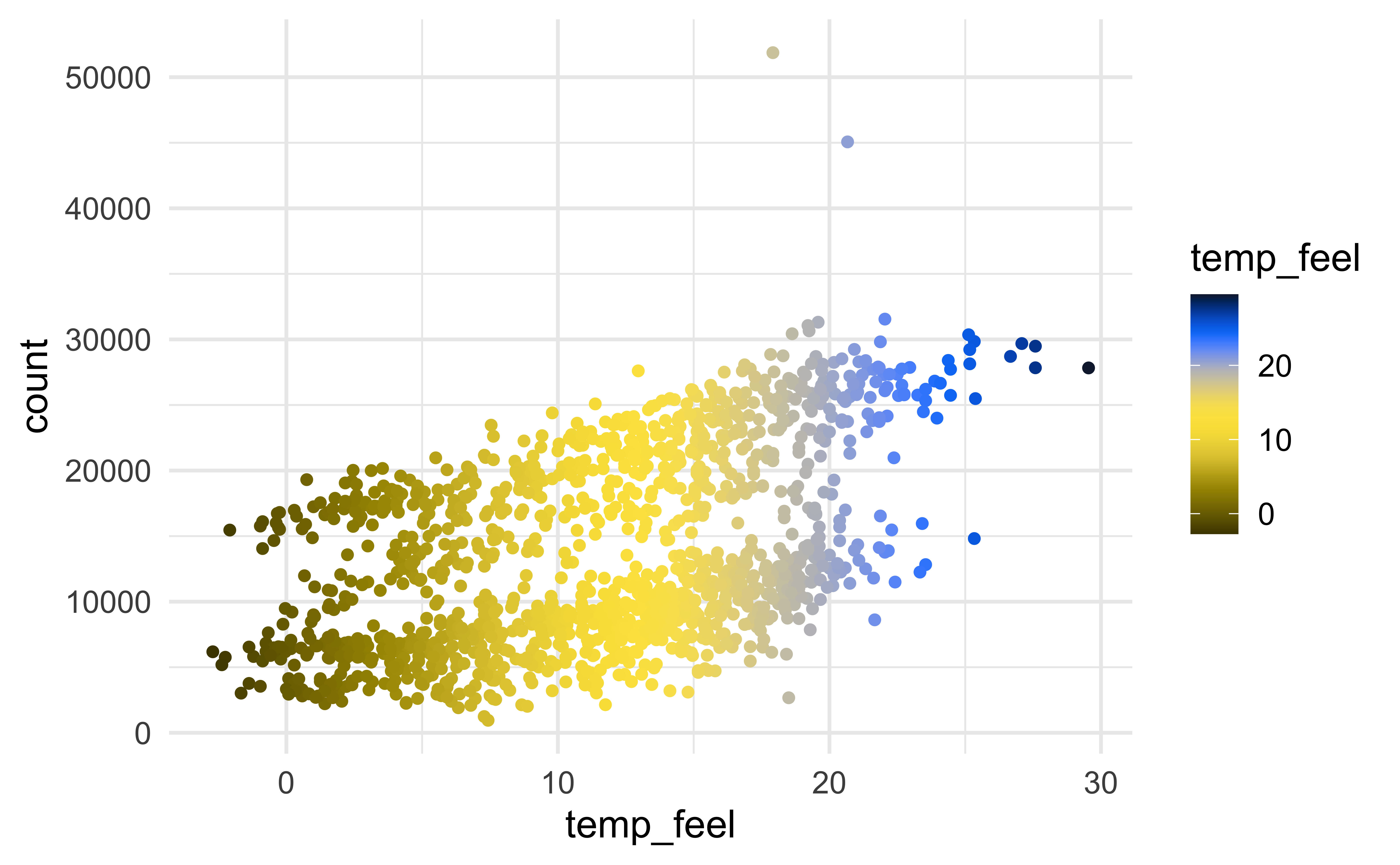

Emulate CVD

deut <-
  colorspace::deutan(
    viridis::turbo(
      n = 100, direction = -1
    )
  )

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  scale_color_gradientn(
    colors = deut
  )

Emulate CVD

g <-
  ggplot(
    bikes,
    aes(x = day_night, y = count,
        fill = season)
  ) +
  geom_boxplot() +
  scale_fill_manual(
    values = carto_custom
  )

g

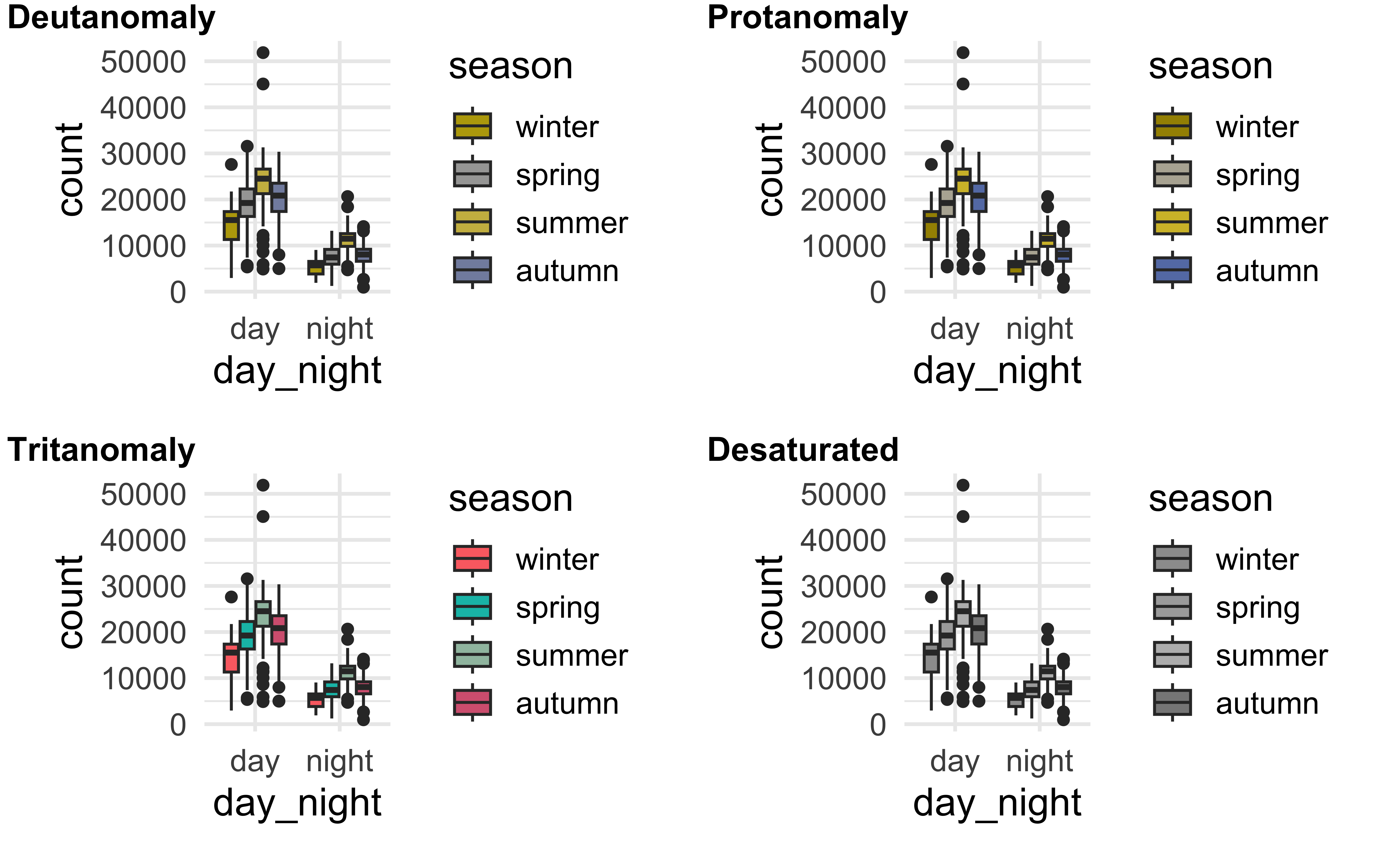

Emulate CVD

# devtools::install_github(
#   "clauswilke/colorblindr"
# )

colorblindr::cvd_grid(g)

Emulate CVD

g2 <-
  ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = season)
  ) +
  geom_point(size = 2, alpha = .75) +
  scale_color_manual(
    values = carto_custom
  )

Emulate CVD

# devtools::install_github("clauswilke/colorblindr")

colorblindr::cvd_grid(g2)

Emulate CVD

g3 <-
  g2 +
  scale_color_manual(
    values = c("#3c89d9", "#1ec99b", "#F7B01B", "#a26e7c")
  )
Scale for colour is already present.
Adding another scale for colour, which will replace the existing
scale.

Emulate CVD

# devtools::install_github("clauswilke/colorblindr")

colorblindr::cvd_grid(g3)

Recap

  • use categorical palettes for qualitative data
    • e.g. scale_*_discrete() and scale_*_manual() for custom options
    • e.g. scale_*_viridis_d and scale_*_brewer() for pre-defined options
  • use sequential or diverging palettes for quantitative data
    • e.g. scale_*_gradient() or scale_*_gradient2() for custom options
    • e.g. scale_*_viridis_c and scale_*_distiller() for pre-defined options
  • various packages provide palettes incl. scale_* components
    • e.g. {rcartocolors}, {scico}, {ggsci}, {ggthemes}, {nord}
  • those and even more packages return palettes as vectors
    • modify and supply them to scale_*_manual() and scale_*_gradientn()
  • use after_scale to modify and recycle color scales

Exercise

Exercise

  • Create a similar visualization as close as possible:
Warning: Using `size` aesthetic for lines was deprecated in ggplot2
3.4.0.
ℹ Please use `linewidth` instead.
Warning: `stat(y)` was deprecated in ggplot2 3.4.0.
ℹ Please use `after_stat(y)` instead.
No summary function supplied, defaulting to `mean_se()`
Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_stringMetric, as.graphicsAnnot(x$label)):
no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Tabular"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"
Warning in grid.Call(C_textBounds, as.graphicsAnnot(x$label),
x$x, x$y, : Unable to calculate text width/height (using zero)
Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Warning in grid.Call.graphics(C_text, as.graphicsAnnot(x$label),
x$x, x$y, : no font could be found for family "Cabinet Grotesk"

Appendix

HCL Spectrum

Evaluate HCL Spectrum

colorspace::specplot(
  colorspace::diverging_hcl(
    n = 100, palette = "Blue-Red"
  )
)

Evaluate HCL Spectrum

colorspace::specplot(
  scico::scico(
    n = 100, palette = "hawaii"
  )
)

colorspace::specplot(
  MetBrewer::met.brewer(
     n = 100, name = "Hiroshige"
  )
)

Evaluate HCL Spectrum

colorspace::specplot(
  rcartocolor::carto_pal(
    n = 7, name = "TealRose"
  )
)

colorspace::specplot(
  MetBrewer::met.brewer(
     n = 100, name = "Cassatt2"
  )
)

Evaluate HCL Spectrum

colorspace::specplot(
  rainbow(
    n = 100
  )
)

colorspace::specplot(
  viridis::turbo(
     n = 100, direction = -1
  )
)

Build Your Own scale_color|fill_*_c()

dubois_pal_c <- function(palette = "dark", reverse = FALSE, ...) {
  dubois_palettes <- list(
    `dark`    = dubois_colors("black", "purple", "violet", "pink"),
    `light`   = dubois_colors("purple", "violet", "pink", "palered")
  )

  pal <- dubois_palettes[[palette]]
  pal <- unname(pal)

  if (reverse) pal <- rev(pal)

  grDevices::colorRampPalette(pal, ...)
}

dubois_pal_c(palette = "light", reverse = TRUE)(3)
[1] "#FFFFFF" "#C1759D" "#582F6C"

Build Your Own scale_color|fill_*_c()

scale_fill_dubois_c <- function(palette = "dark", reverse = FALSE, ...) {
  if (!palette %in% c("dark", "light")) stop('Palette should be "dark" or "light".')

  pal <- dubois_pal_c(palette = palette, reverse = reverse)

  ggplot2::scale_fill_gradientn(colours = pal(256), ...)
}

scale_color_dubois_c <- function(palette = "dark", reverse = FALSE, ...) {
  if (!palette %in% c("dark", "light")) stop('Palette should be "dark" or "light".')

  pal <- dubois_pal_c(palette = palette, reverse = reverse)

  ggplot2::scale_color_gradientn(colours = pal(256), ...)
}

Use Your Own scale_color|fill_*_c()

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  scale_color_dubois_c()

Use Your Own scale_color|fill_*_c()

ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = temp_feel)
  ) +
  geom_point() +
  scale_color_dubois_c(
    palette = "light",
    reverse = TRUE
  )

🔗 datavizaz.org
