Visualizing time series data II

Lecture 10

Dr. Greg Chism

University of Arizona
INFO 526 - Fall 2023

Warm up

Announcements

• Don’t forget to watch the videos for Wednesday’s lecture

Project next steps I

• Proposal feedback is available.

  • Required: Address all issues and close them.

  • Optional: Submit for regrade, by replying to the “Proposal feedback” issue and tagging me in your reply. Due 5pm tomorrow (Tuesday). Final proposal score will be midpoint of original and updated score.

Project next steps II

• Create a slide deck in presentation.qmd, replacing the placeholder text.
• Add your write-up to index.qmd, replacing the placeholder text.
• In both outputs, hide the code with echo: false prior to turning them in.
• Due: Wednesday, Monday, October 16th, 3pm.

Setup

# load packages
library(countdown)
library(tidyverse)
library(lubridate)
library(janitor)
library(colorspace)
library(broom)
library(fs)

# set theme for ggplot2
ggplot2::theme_set(ggplot2::theme_minimal(base_size = 14))

# set width of code output
options(width = 65)

# set figure parameters for knitr
knitr::opts_chunk$set(
  fig.width = 7, # 7" width
  fig.asp = 0.618, # the golden ratio
  fig.retina = 3, # dpi multiplier for displaying HTML output on retina
  fig.align = "center", # center align figures
  dpi = 300 # higher dpi, sharper image
)

Working with dates

AQI levels

The previous graphic in tibble form, to be used later…

aqi_levels <- tribble(
  ~aqi_min, ~aqi_max, ~color,    ~level,
  0,        50,       "#D8EEDA", "Good",
  51,       100,      "#F1E7D4", "Moderate",
  101,      150,      "#F8E4D8", "Unhealthy for sensitive groups",
  151,      200,      "#FEE2E1", "Unhealthy",
  201,      300,      "#F4E3F7", "Very unhealthy",
  301,      400,      "#F9D0D4", "Hazardous"
)

AQI data

• Source: EPA’s Daily Air Quality Tracker

• 2016 - 2022 AQI (Ozone and PM2.5 combined) for Tucson, AZ core-based statistical area (CBSA), one file per year

• 2016 - 2022 AQI (Ozone and PM2.5 combined) for San Francisco-Oakland-Hayward, CA CBSA, one file per year

2022 Tucson, AZ

tuc_2022 <- read_csv(
  here::here("data/tucson/ad_aqi_tracker_data-2022.csv"),
  na = c(".", "")
)

tuc_2022 <- tuc_2022 |>
  janitor::clean_names() |>
  mutate(date = mdy(date))

tuc_2022

# A tibble: 365 × 11
  date       aqi_value main_pollutant site_name site_id    source
  <date>         <dbl> <chr>          <chr>     <chr>      <chr>
1 2022-01-01        40 PM2.5          GERONIMO  04-019-11… AQS
2 2022-01-02        55 PM2.5          GERONIMO  04-019-11… AQS
3 2022-01-03        55 PM2.5          GERONIMO  04-019-11… AQS
# ℹ 362 more rows
# ℹ 5 more variables: x20_year_high_2000_2019 <dbl>,
#   x20_year_low_2000_2019 <dbl>,
#   x5_year_average_2015_2019 <dbl>, date_of_20_year_high <chr>,
#   date_of_20_year_low <chr>

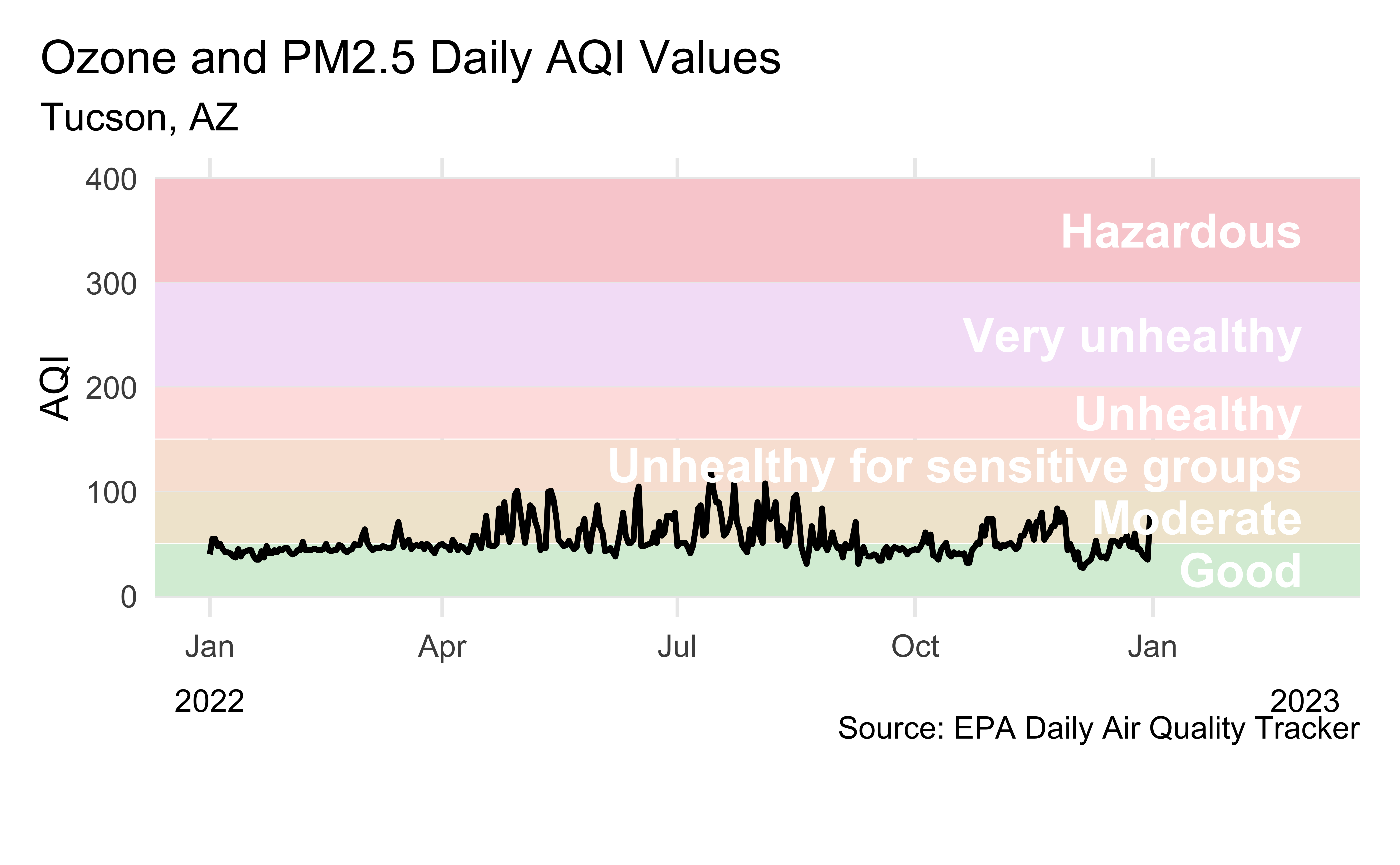

Visualizing Tucson AQI

Another visualization of Tucson AQI

Recreate the following visualization.

Highlights

• The lubridate package is useful for converting to dates from character strings in a given format, e.g. mdy(), ymd(), etc.

• The colorspace package is useful for programmatically darkening / lightening colors

• scale_x_date: Set date_labels as "%b %y" for month-2 digit year, "%D" for date format such as %m/%d/%y, etc. See help for strptime() for more.

• scale_color_identity() or scale_fill_identity() can be useful when your data already represents aesthetic values that ggplot2 can handle directly. By default doesn’t produce a legend.

Calculating cumulatives

Cumulatives over time

• When visualizing time series data, a somewhat common task is to calculate cumulatives over time and plot them

• In our example we’ll calculate the number of days with “good” AQI (\(\le\) 50) and plot that value on the y-axis and the date on the x-axis

Calculating cumulatives

Step 1. Arrange your data

tuc_2022 |>
  select(date, aqi_value) |>
  filter(!is.na(aqi_value)) |>
  arrange(date)

# A tibble: 365 × 2
  date       aqi_value
  <date>         <dbl>
1 2022-01-01        40
2 2022-01-02        55
3 2022-01-03        55
4 2022-01-04        48
5 2022-01-05        50
# ℹ 360 more rows

Calculating cumulatives

Step 2. Identify good days

tuc_2022 |>
  select(date, aqi_value) |>
  filter(!is.na(aqi_value)) |>
  arrange(date) |>
  mutate(good_aqi = if_else(aqi_value <= 50, 1, 0))

# A tibble: 365 × 3
  date       aqi_value good_aqi
  <date>         <dbl>    <dbl>
1 2022-01-01        40        1
2 2022-01-02        55        0
3 2022-01-03        55        0
4 2022-01-04        48        1
5 2022-01-05        50        1
# ℹ 360 more rows

Calculating cumulatives

Step 3. Sum over time

tuc_2022 |>
  select(date, aqi_value) |>
  filter(!is.na(aqi_value)) |>
  arrange(date) |>
  mutate(
    good_aqi = if_else(aqi_value <= 50, 1, 0),
    cumsum_good_aqi = cumsum(good_aqi)
  )

# A tibble: 365 × 4
  date       aqi_value good_aqi cumsum_good_aqi
  <date>         <dbl>    <dbl>           <dbl>
1 2022-01-01        40        1               1
2 2022-01-02        55        0               1
3 2022-01-03        55        0               1
4 2022-01-04        48        1               2
5 2022-01-05        50        1               3
# ℹ 360 more rows

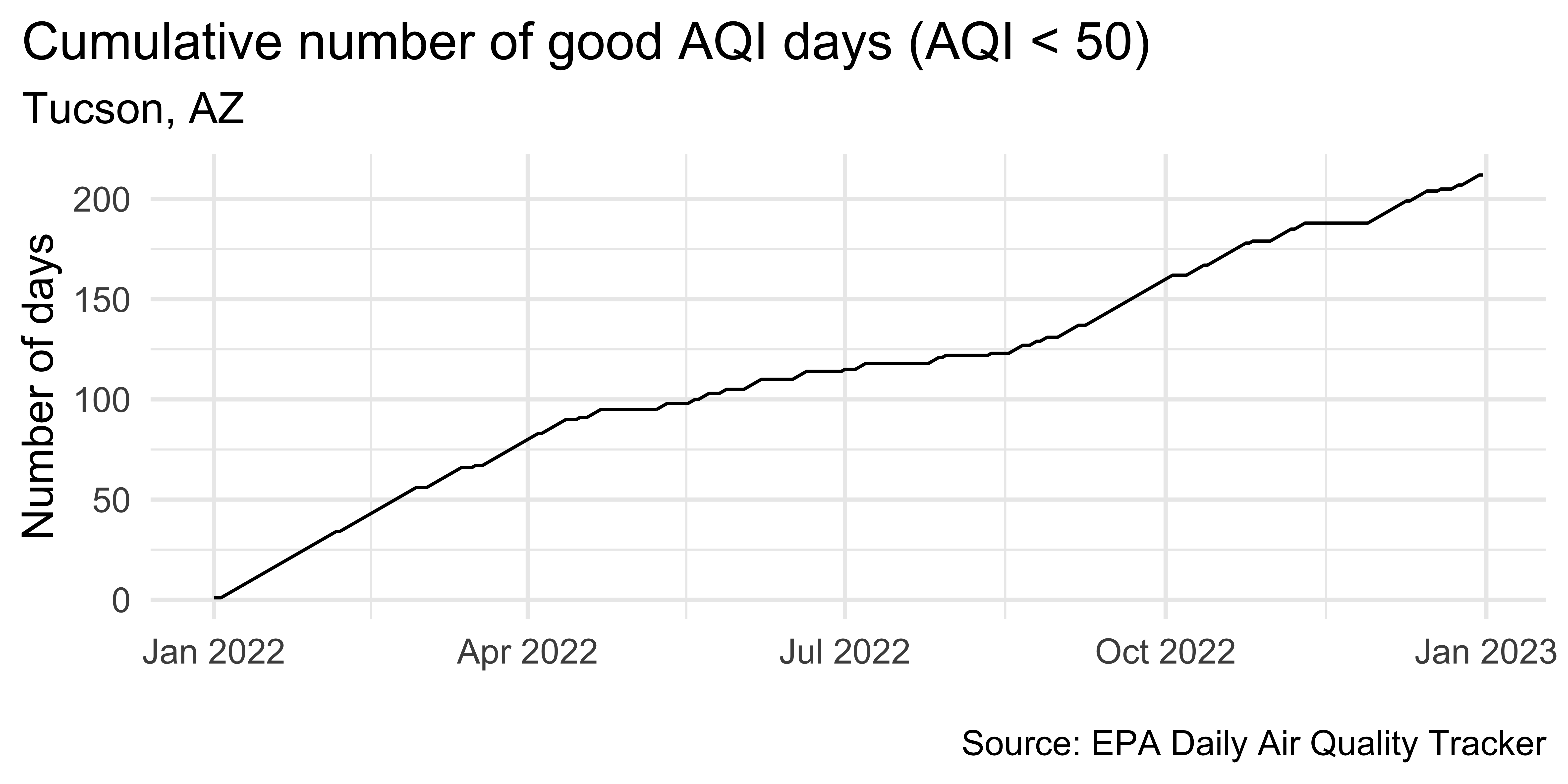

Plotting cumulatives

• Plot
• Code

tuc_2022 |>
  select(date, aqi_value) |>
  filter(!is.na(aqi_value)) |>
  arrange(date) |>
  mutate(
    good_aqi = if_else(aqi_value <= 50, 1, 0),
    cumsum_good_aqi = cumsum(good_aqi)
  ) |>
  ggplot(aes(x = date, y = cumsum_good_aqi, group = 1)) +
  geom_line() +
  scale_x_date(date_labels = "%b %Y") +
  labs(
    x = NULL, y = "Number of days",
    title = "Cumulative number of good AQI days (AQI < 50)",
    subtitle = "Tucson, AZ",
    caption = "\nSource: EPA Daily Air Quality Tracker"
  ) +
  theme(plot.title.position = "plot")

Detrending

Detrending

• Detrending is removing prominent long-term trend in time series to specifically highlight any notable deviations

• Let’s demonstrate using multiple years of AQI data

Multiple years of Tucson, AZ data

tuc_files <- fs::dir_ls(here::here("data/tucson"))
tuc_files

/Users/gchism/Desktop/INFO526-F23/slides/09/data/tucson/ad_aqi_tracker_data-2017.csv
/Users/gchism/Desktop/INFO526-F23/slides/09/data/tucson/ad_aqi_tracker_data-2018.csv
/Users/gchism/Desktop/INFO526-F23/slides/09/data/tucson/ad_aqi_tracker_data-2019.csv
/Users/gchism/Desktop/INFO526-F23/slides/09/data/tucson/ad_aqi_tracker_data-2020.csv
/Users/gchism/Desktop/INFO526-F23/slides/09/data/tucson/ad_aqi_tracker_data-2021.csv
/Users/gchism/Desktop/INFO526-F23/slides/09/data/tucson/ad_aqi_tracker_data-2022.csv
/Users/gchism/Desktop/INFO526-F23/slides/09/data/tucson/ad_aqi_tracker_data-2023.csv

Reading multiple files

tuc <- read_csv(tuc_files, na = c(".", ""))

tuc <- tuc |>
  janitor::clean_names() |>
  mutate(
    date = mdy(date),
    good_aqi = if_else(aqi_value <= 50, 1, 0)
  ) |>
  filter(!is.na(aqi_value)) |>
  arrange(date) |>
  mutate(cumsum_good_aqi = cumsum(good_aqi), .after = aqi_value)

tuc

# A tibble: 2,392 × 13
  date       aqi_value cumsum_good_aqi main_pollutant site_name
  <date>         <dbl>           <dbl> <chr>          <chr>
1 2017-01-01        38               1 Ozone          SAGUARO PA…
2 2017-01-02        40               2 Ozone          SAGUARO PA…
3 2017-01-03        38               3 Ozone          SAGUARO PA…
4 2017-01-04        38               4 Ozone          SAGUARO PA…
5 2017-01-05        32               5 Ozone          SAGUARO PA…
# ℹ 2,387 more rows
# ℹ 8 more variables: site_id <chr>, source <chr>,
#   x20_year_high_2000_2019 <dbl>, x20_year_low_2000_2019 <dbl>,
#   x5_year_average_2015_2019 <dbl>, date_of_20_year_high <chr>,
#   date_of_20_year_low <chr>, good_aqi <dbl>

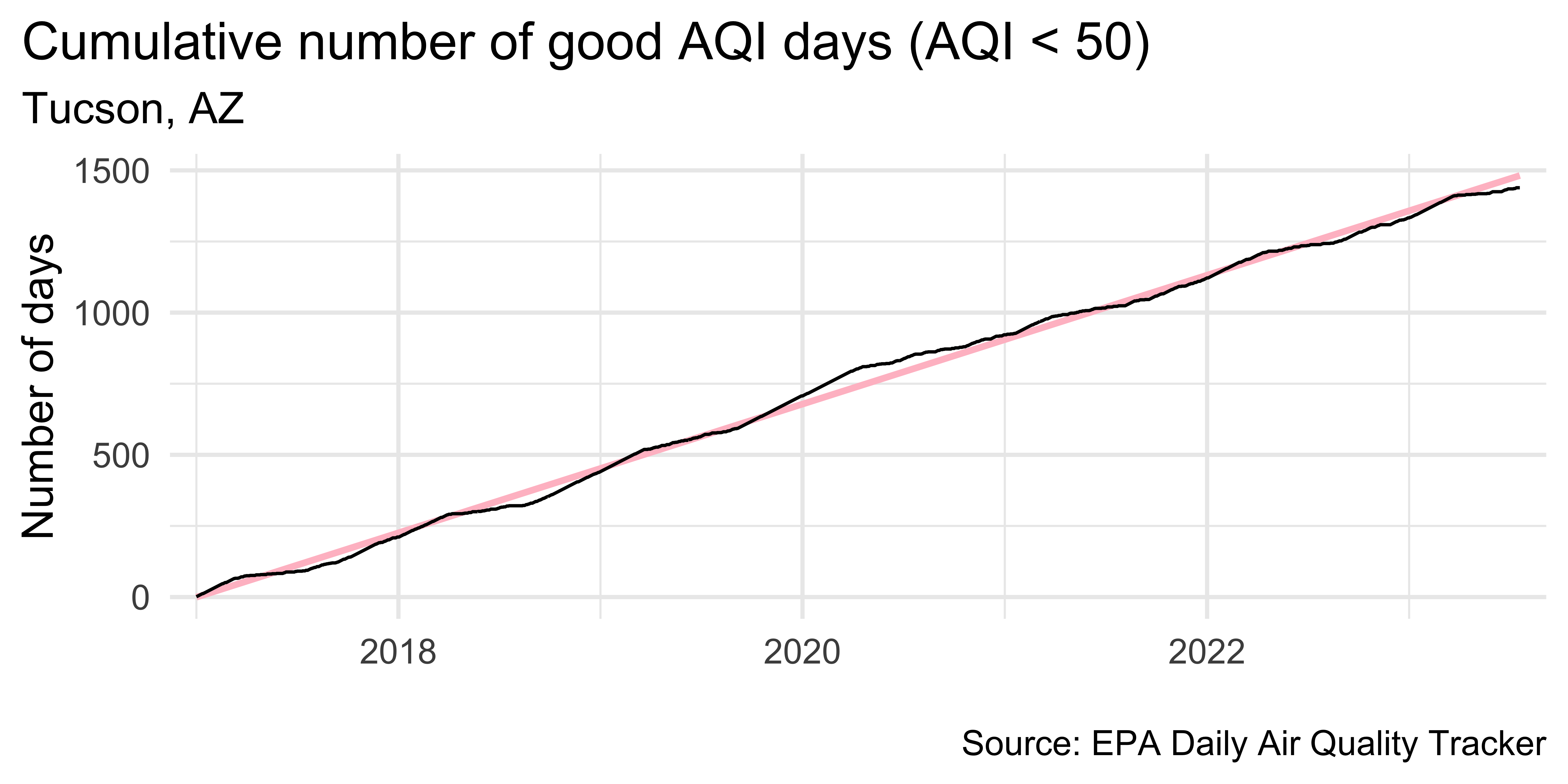

Plot trend since 2016

• Plot
• Code

tuc |>
  ggplot(aes(x = date, y = cumsum_good_aqi, group = 1)) +
  geom_smooth(method = "lm", color = "pink") +
  geom_line() +
  scale_x_date(
    expand = expansion(mult = 0.02),
    date_labels = "%Y"
  ) +
  labs(
    x = NULL, y = "Number of days",
    title = "Cumulative number of good AQI days (AQI < 50)",
    subtitle = "Tucson, AZ",
    caption = "\nSource: EPA Daily Air Quality Tracker"
  ) +
  theme(plot.title.position = "plot")

`geom_smooth()` using formula = 'y ~ x'

Detrend

Step 1. Fit a simple linear regression

m <- lm(cumsum_good_aqi ~ date, data = tuc)

m

Call:
lm(formula = cumsum_good_aqi ~ date, data = tuc)

Coefficients:
(Intercept)         date
  -10644.57         0.62

Detrend

Step 2. Augment the data with model results (using broom::augment())

tuc_aug <- augment(m)

tuc_aug

# A tibble: 2,392 × 8
  cumsum_good_aqi date       .fitted .resid    .hat .sigma
            <dbl> <date>       <dbl>  <dbl>   <dbl>  <dbl>
1               1 2017-01-01 -0.574    1.57 0.00167   23.9
2               2 2017-01-02  0.0457   1.95 0.00167   23.9
3               3 2017-01-03  0.666    2.33 0.00167   23.9
4               4 2017-01-04  1.29     2.71 0.00166   23.9
5               5 2017-01-05  1.91     3.09 0.00166   23.9
# ℹ 2,387 more rows
# ℹ 2 more variables: .cooksd <dbl>, .std.resid <dbl>

Detrend

Step 3. Divide the observed value of cumsum_good_aqi by the respective value in the long-term trend (i.e., .fitted)

tuc_aug <- tuc_aug |>
  mutate(ratio = cumsum_good_aqi / .fitted, .after = .fitted)


tuc_aug

# A tibble: 2,392 × 9
  cumsum_good_aqi date       .fitted ratio .resid    .hat .sigma
            <dbl> <date>       <dbl> <dbl>  <dbl>   <dbl>  <dbl>
1               1 2017-01-01 -0.574  -1.74   1.57 0.00167   23.9
2               2 2017-01-02  0.0457 43.7    1.95 0.00167   23.9
3               3 2017-01-03  0.666   4.51   2.33 0.00167   23.9
4               4 2017-01-04  1.29    3.11   2.71 0.00166   23.9
5               5 2017-01-05  1.91    2.62   3.09 0.00166   23.9
# ℹ 2,387 more rows
# ℹ 2 more variables: .cooksd <dbl>, .std.resid <dbl>

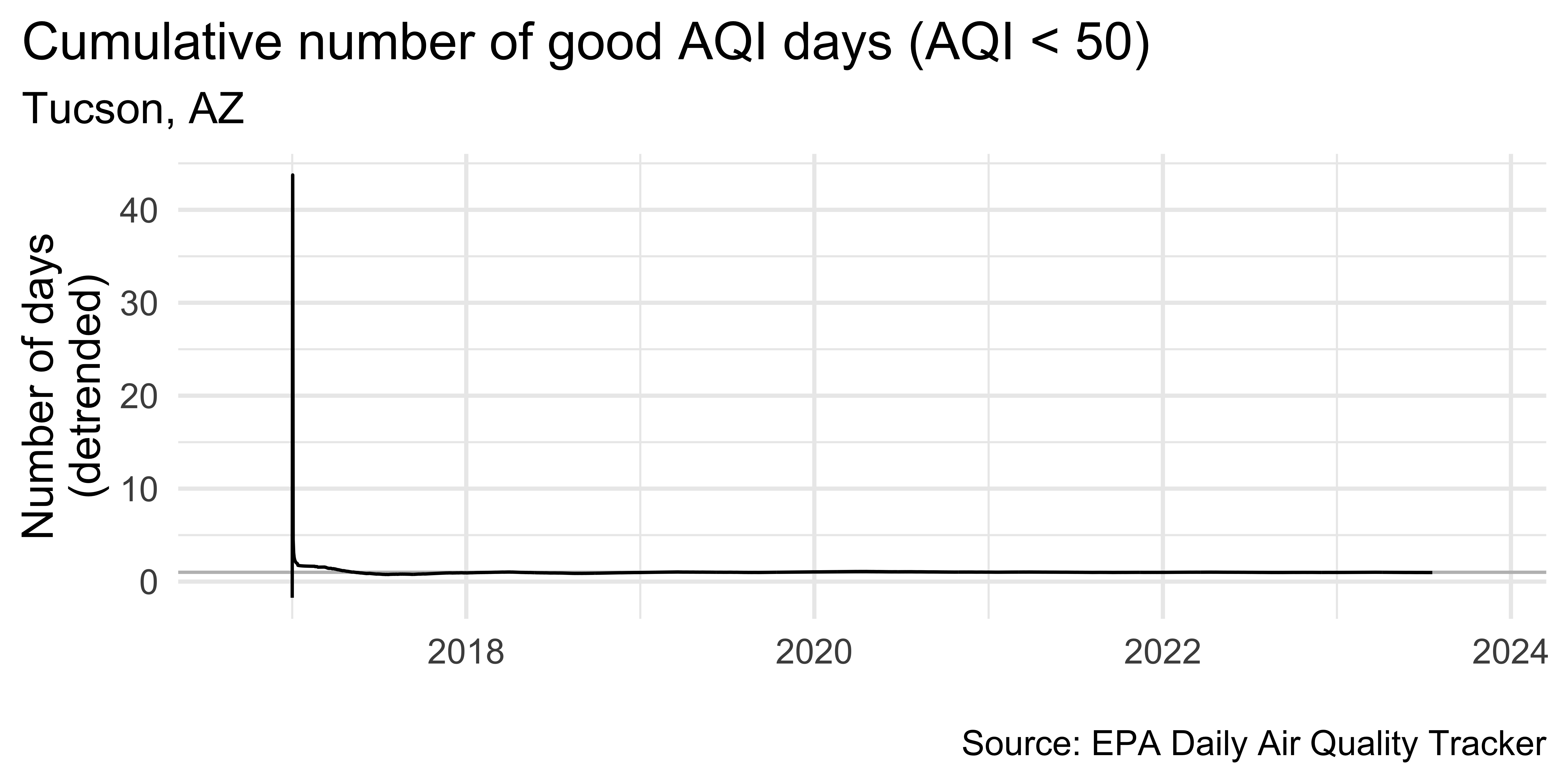

Visualize detrended data

• Plot
• Code

tuc_aug |>
  ggplot(aes(x = date, y = ratio, group = 1)) +
  geom_hline(yintercept = 1, color = "gray") +
  geom_line() +
  scale_x_date(
    expand = expansion(mult = 0.1),
    date_labels = "%Y"
  ) +
  labs(
    x = NULL, y = "Number of days\n(detrended)",
    title = "Cumulative number of good AQI days (AQI < 50)",
    subtitle = "Tucson, AZ",
    caption = "\nSource: EPA Daily Air Quality Tracker"
  ) +
  theme(plot.title.position = "plot")

Air Quality in Tucson

barely anything interesting happening!

let’s look at data from somewhere with a bit more “interesting” air quality data…

Read in multiple years of SF data

sf_files <- fs::dir_ls(here::here("data/san-francisco"))

sf <- read_csv(sf_files, na = c(".", ""))

sf <- sf |>
  janitor::clean_names() |>
  mutate(
    date = mdy(date),
    good_aqi = if_else(aqi_value <= 50, 1, 0)
  ) |>
  filter(!is.na(aqi_value)) |>
  arrange(date) |>
  mutate(cumsum_good_aqi = cumsum(good_aqi), .after = aqi_value)

sf

# A tibble: 2,557 × 13
  date       aqi_value cumsum_good_aqi main_pollutant site_name
  <date>         <dbl>           <dbl> <chr>          <chr>
1 2016-01-01        32               1 PM2.5          Durham Arm…
2 2016-01-02        37               2 PM2.5          Durham Arm…
3 2016-01-03        45               3 PM2.5          Durham Arm…
4 2016-01-04        33               4 PM2.5          Durham Arm…
5 2016-01-05        27               5 PM2.5          Durham Arm…
# ℹ 2,552 more rows
# ℹ 8 more variables: site_id <chr>, source <chr>,
#   x20_year_high_2000_2019 <dbl>, x20_year_low_2000_2019 <dbl>,
#   x5_year_average_2015_2019 <dbl>, date_of_20_year_high <chr>,
#   date_of_20_year_low <chr>, good_aqi <dbl>

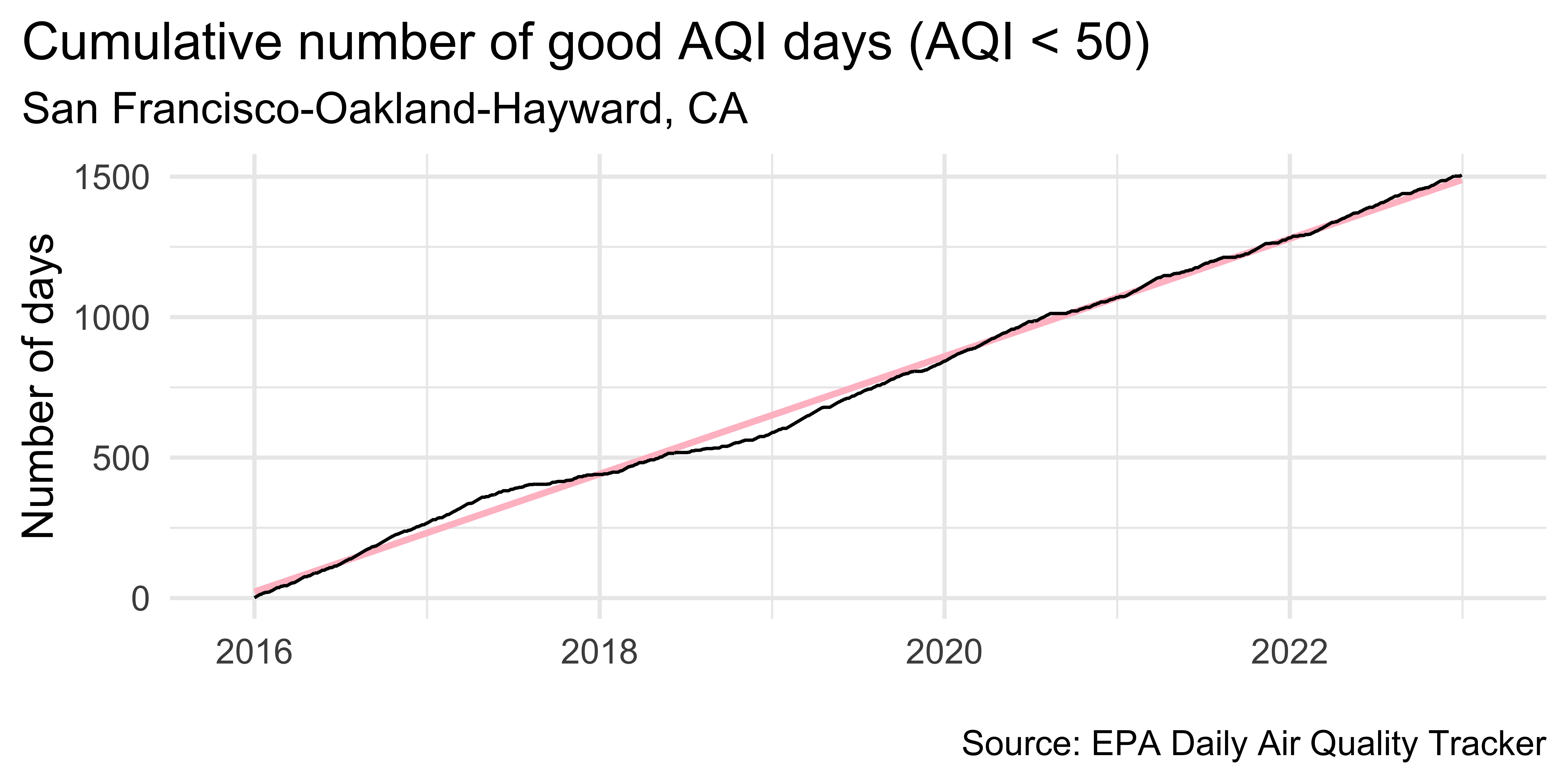

Plot trend since 2016

• Plot
• Code

sf |>
  ggplot(aes(x = date, y = cumsum_good_aqi, group = 1)) +
  geom_smooth(method = "lm", color = "pink") +
  geom_line() +
  scale_x_date(
    expand = expansion(mult = 0.07),
    date_labels = "%Y"
  ) +
  labs(
    x = NULL, y = "Number of days",
    title = "Cumulative number of good AQI days (AQI < 50)",
    subtitle = "San Francisco-Oakland-Hayward, CA",
    caption = "\nSource: EPA Daily Air Quality Tracker"
  ) +
  theme(plot.title.position = "plot")

`geom_smooth()` using formula = 'y ~ x'

Detrend

1. Fit a simple linear regression

m_sf <- lm(cumsum_good_aqi ~ date, data = sf)

2. Augment the data with model results

sf_aug <- augment(m_sf)

3. Divide the observed value of cumsum_good_aqi by the respective value in the long-term trend (i.e., .fitted)

sf_aug <- sf_aug |>
  mutate(ratio = cumsum_good_aqi / .fitted, .after = .fitted)

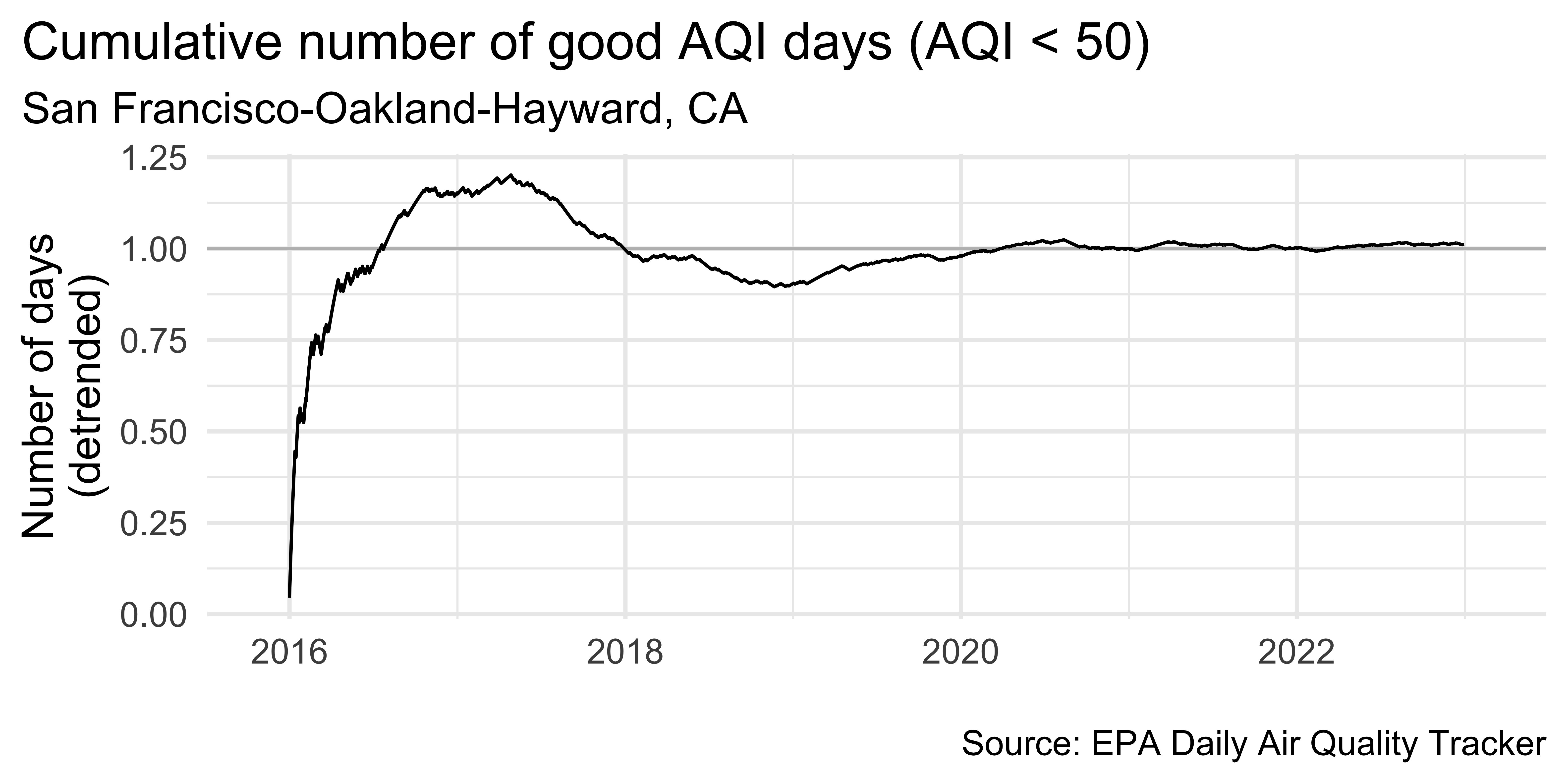

Visualize detrended data

• Plot
• Code

sf_aug |>
  ggplot(aes(x = date, y = ratio, group = 1)) +
  geom_hline(yintercept = 1, color = "gray") +
  geom_line() +
  scale_x_date(
    expand = expansion(mult = 0.07),
    date_labels = "%Y"
  ) +
  labs(
    x = NULL, y = "Number of days\n(detrended)",
    title = "Cumulative number of good AQI days (AQI < 50)",
    subtitle = "San Francisco-Oakland-Hayward, CA",
    caption = "\nSource: EPA Daily Air Quality Tracker"
  ) +
  theme(plot.title.position = "plot")

Detrending

• In step 2 we fit a very simple model

• Depending on the complexity you’re trying to capture you might choose to fit a much more complex model

• You can also decompose the trend into multiple trends, e.g. monthly, long-term, seasonal, etc.
